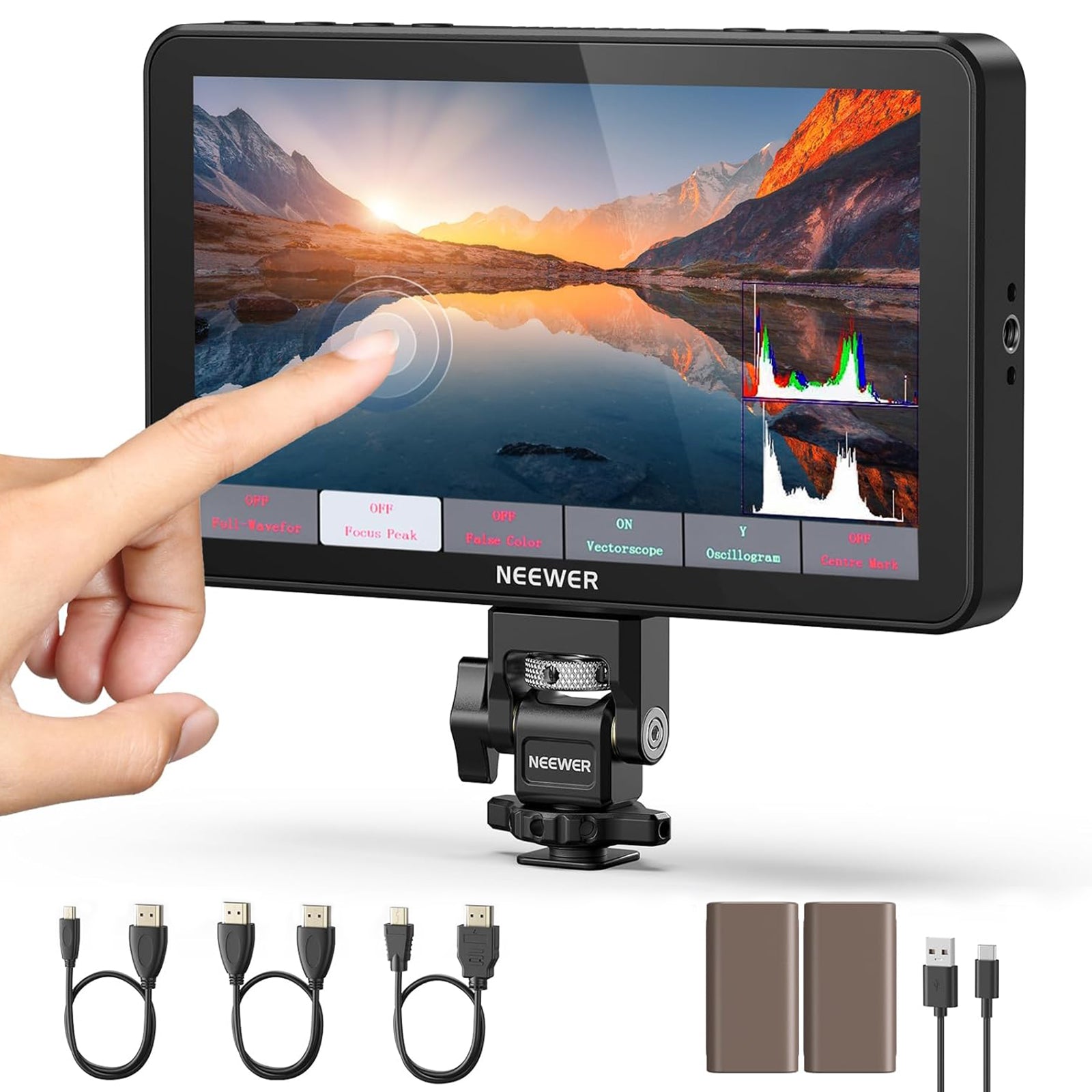

NEEWER F700 7" Camera Field Touch Screen Monitor

$299.99
The coupon will be automatically applied once you add it to the cart.
SKU: 66605230
6 in stock

Warranty

All Neewer products carry a 2-Year Warranty and 45-day Return. Learn more at Warranty Policy.

Shipping Policy

Shipping from local warehouse based on your area, normally it takes 2~10 days for the delivery, Learn more at Shipping Policy.

Firmware & Manual

To download the product firmware or manual, please visit our Download Center.

Information

Due to the impact of tariffs and logistics costs, prices vary by location.

⚠️
WARNING:This product can expose you to chemicals including [Lead and Phthalates], which
is [are] known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov.

Description

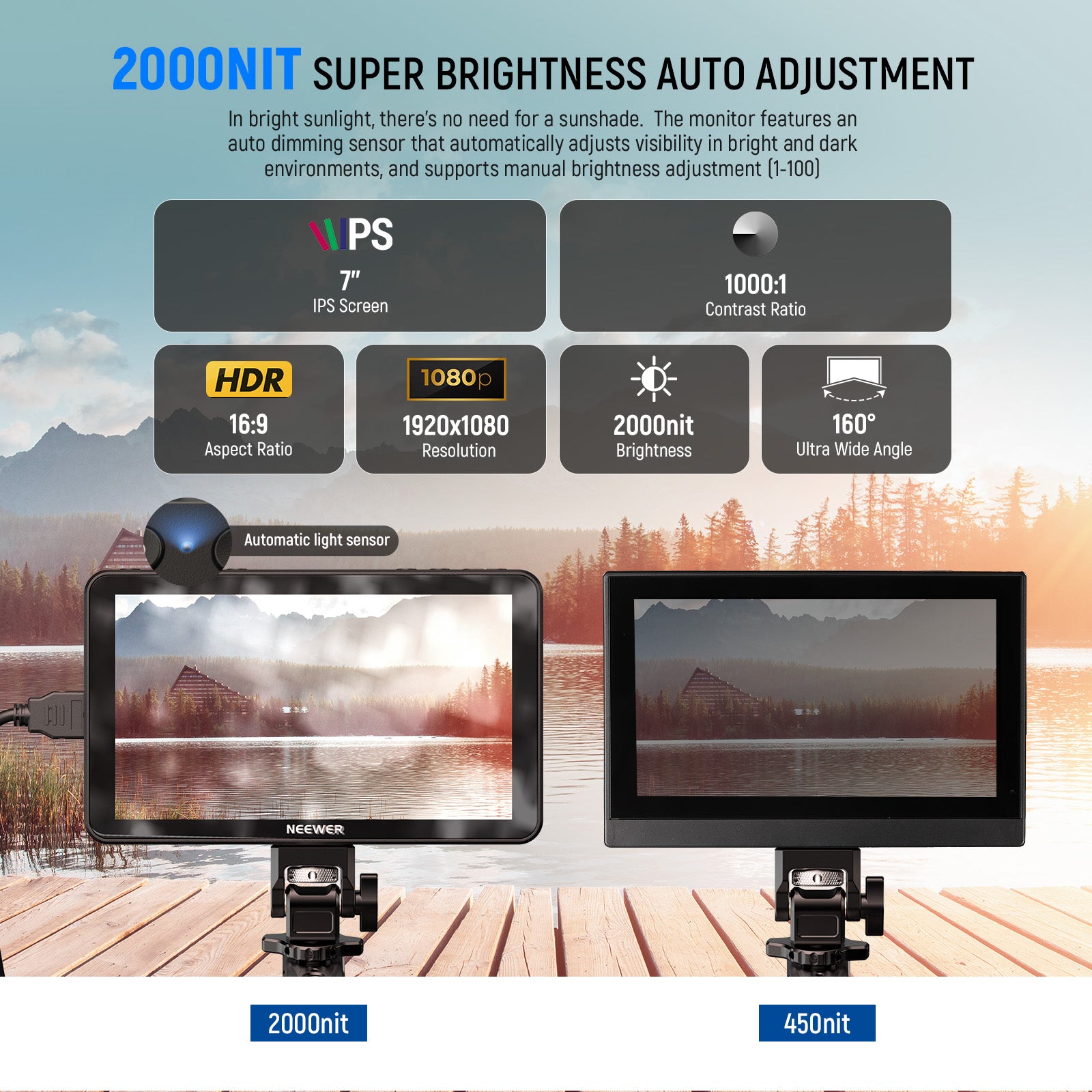

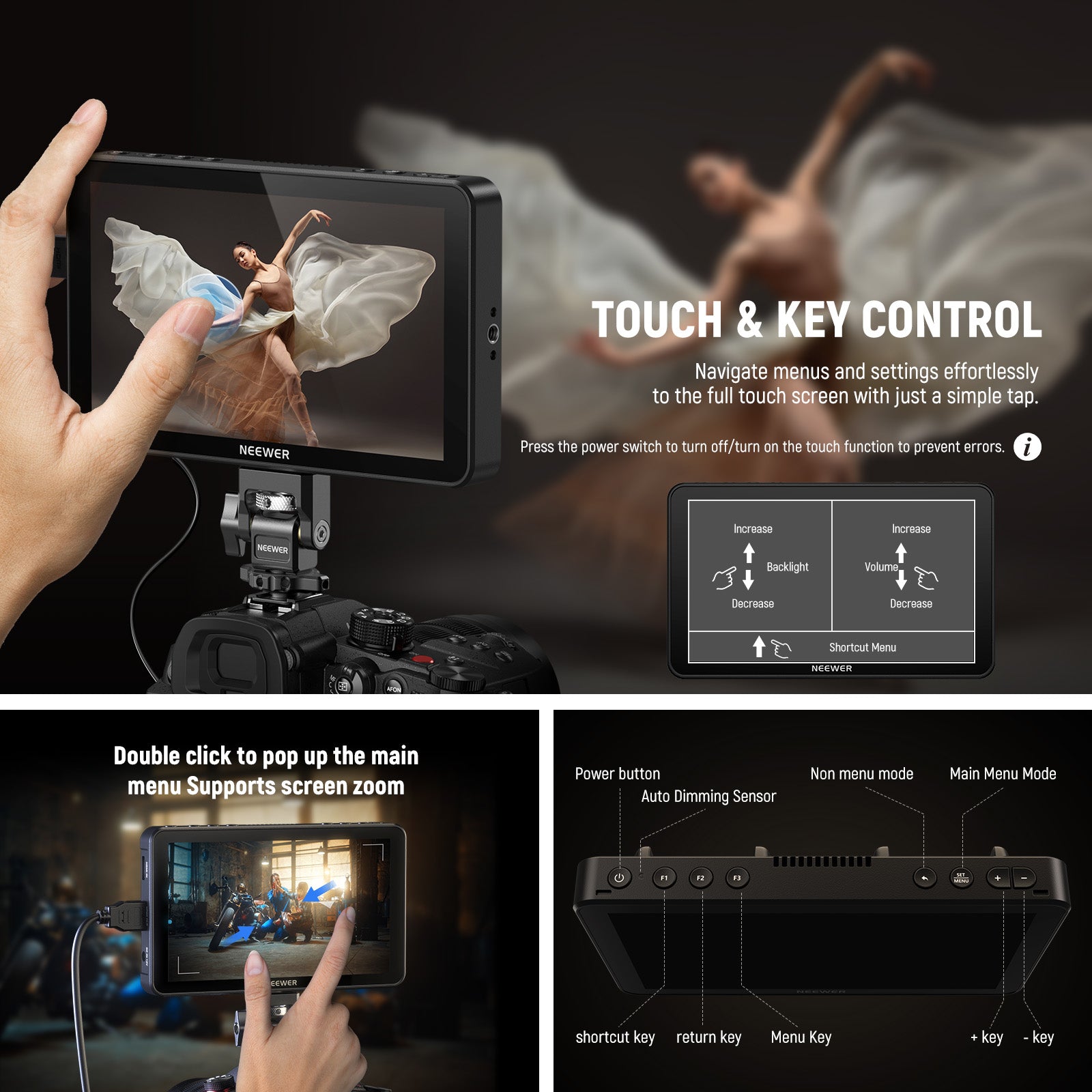

  • 2000nit Touch Screen & Auto Backlight Control- The field monitor features a 7 inch IPS touch screen with a 1920x1080 pixel resolution, 2000nit brightness, 1000:1 contrast ratio, 16:9 aspect ratio, 160° ultra wide viewing and a 180° adjustable bracket for clear and detailed monitoring. Upgraded with manual and automatic backlight adjustment (1-100) under different lighting conditions, the monitor with key and touch control (can be turned off) for intuitive use

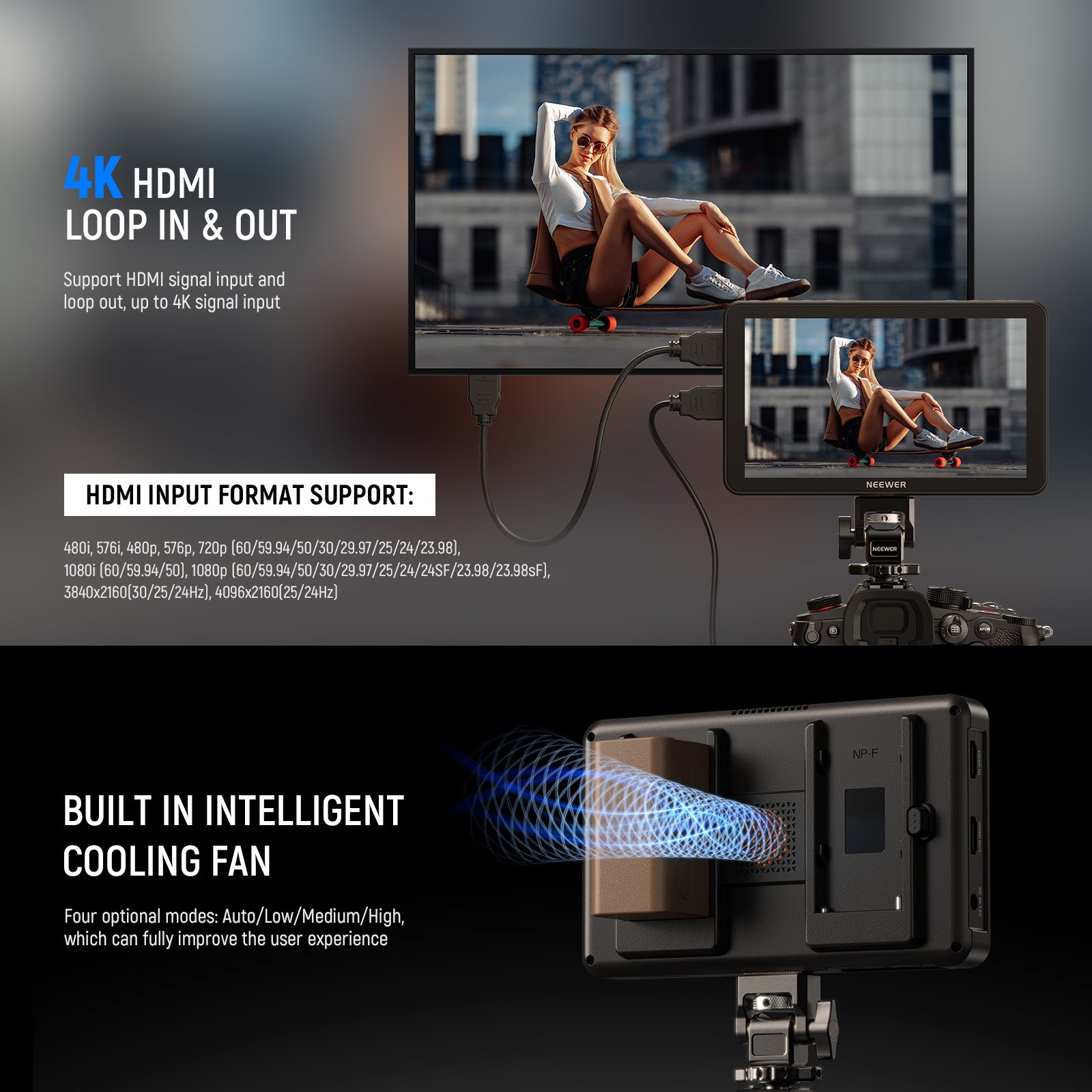

  • 4K HDMI Loop In & Out- Supporting HDMI loop in and out for up to 4K resolution, the camera monitor accommodates 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (24/25Hz) formats, and makes simultaneous audio monitoring possible via a 3.5mm headphone jack (headphones not included)

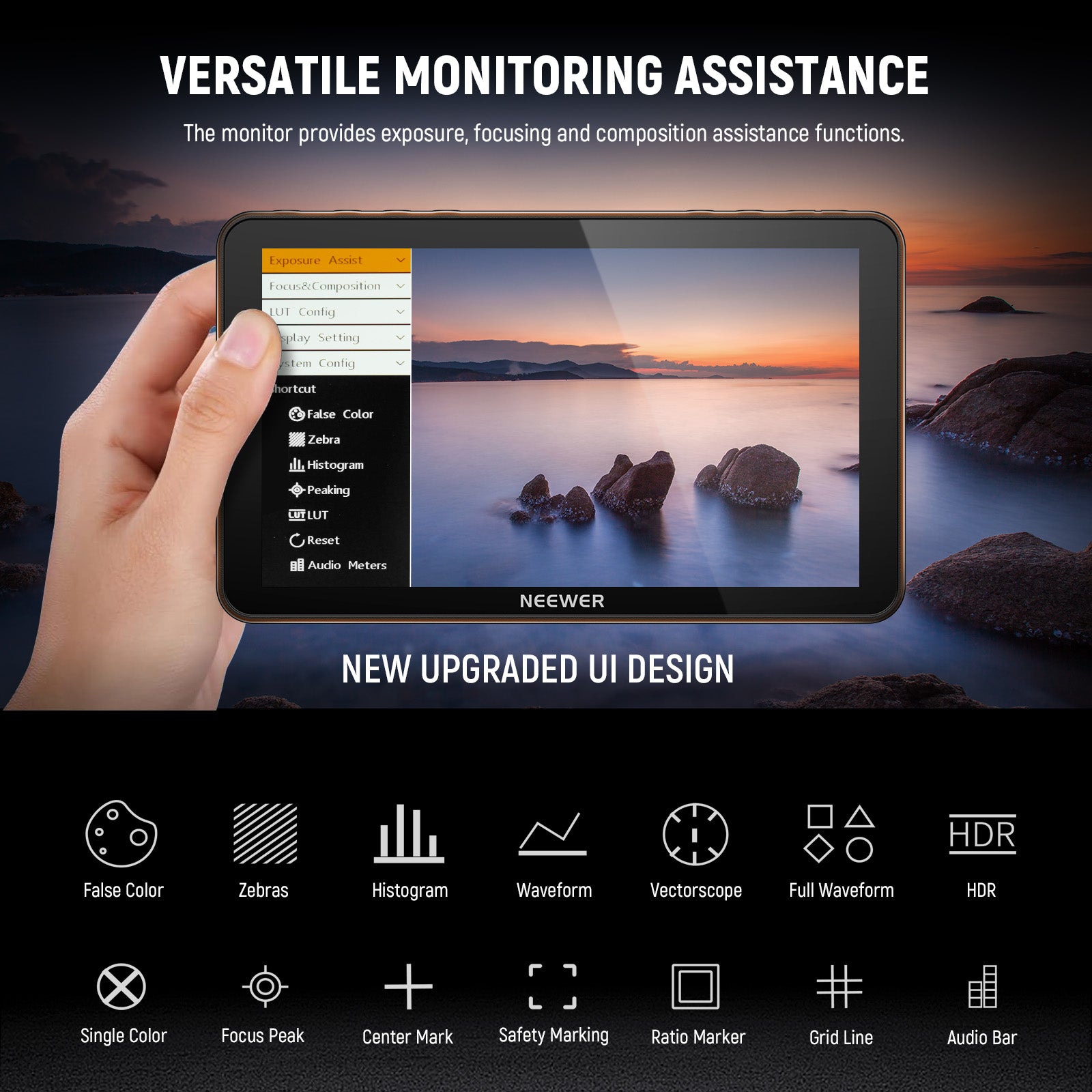

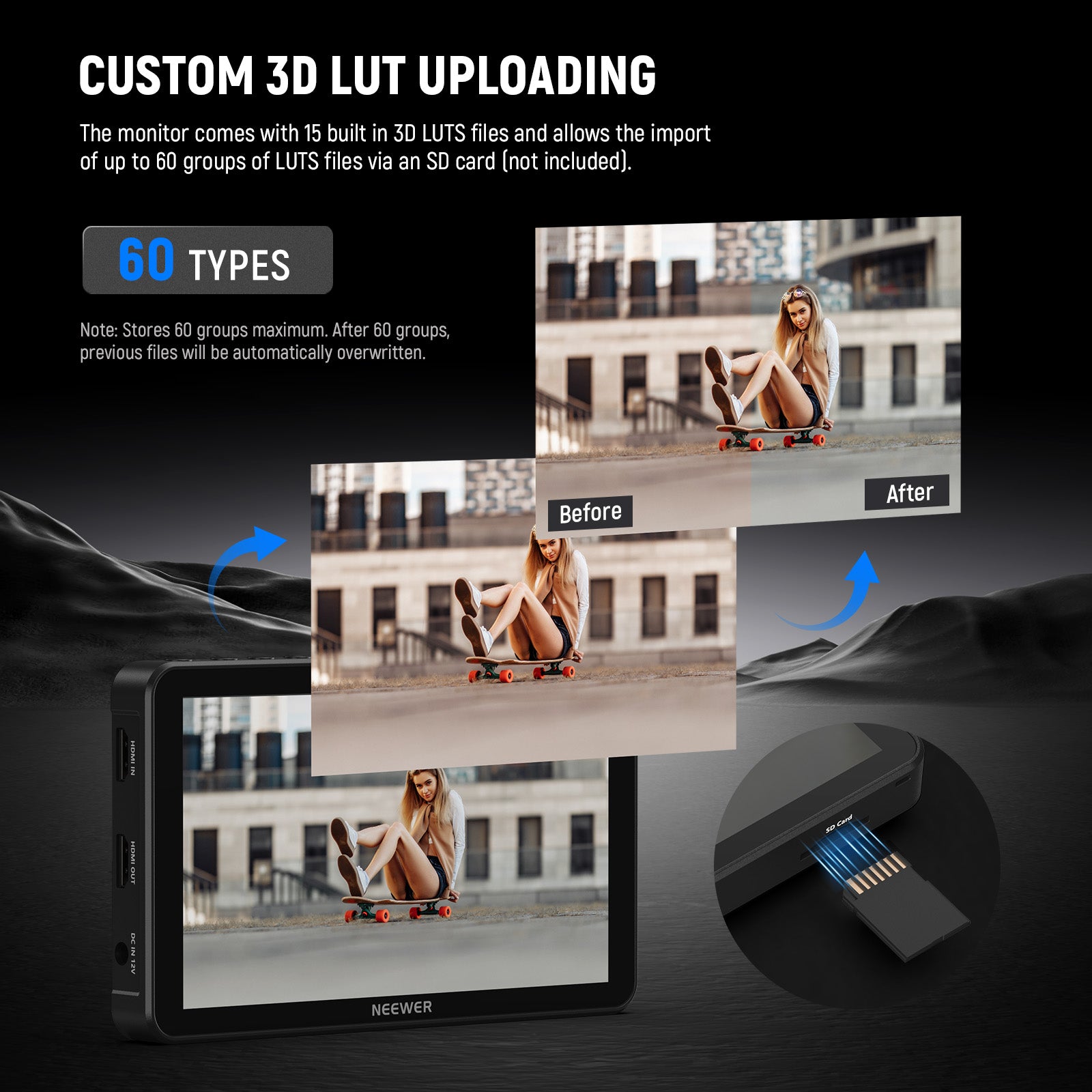

  • Versatile Monitoring & Custom 3D LUT Upload- The field monitor offers False Color, Zebras, Histogram, Oscillogram, Full Waveform, Vectorscope, HDR, Single Color, Peak Focus, Audio Bar and more professional functions, with shortcut buttons (F1, F2, F3) on top for quick access. With 15 preloaded 3D LUTs, the monitor supports up to 60 custom 3D LUT file uploading, and even firmware upgrading via an SD card (not included)

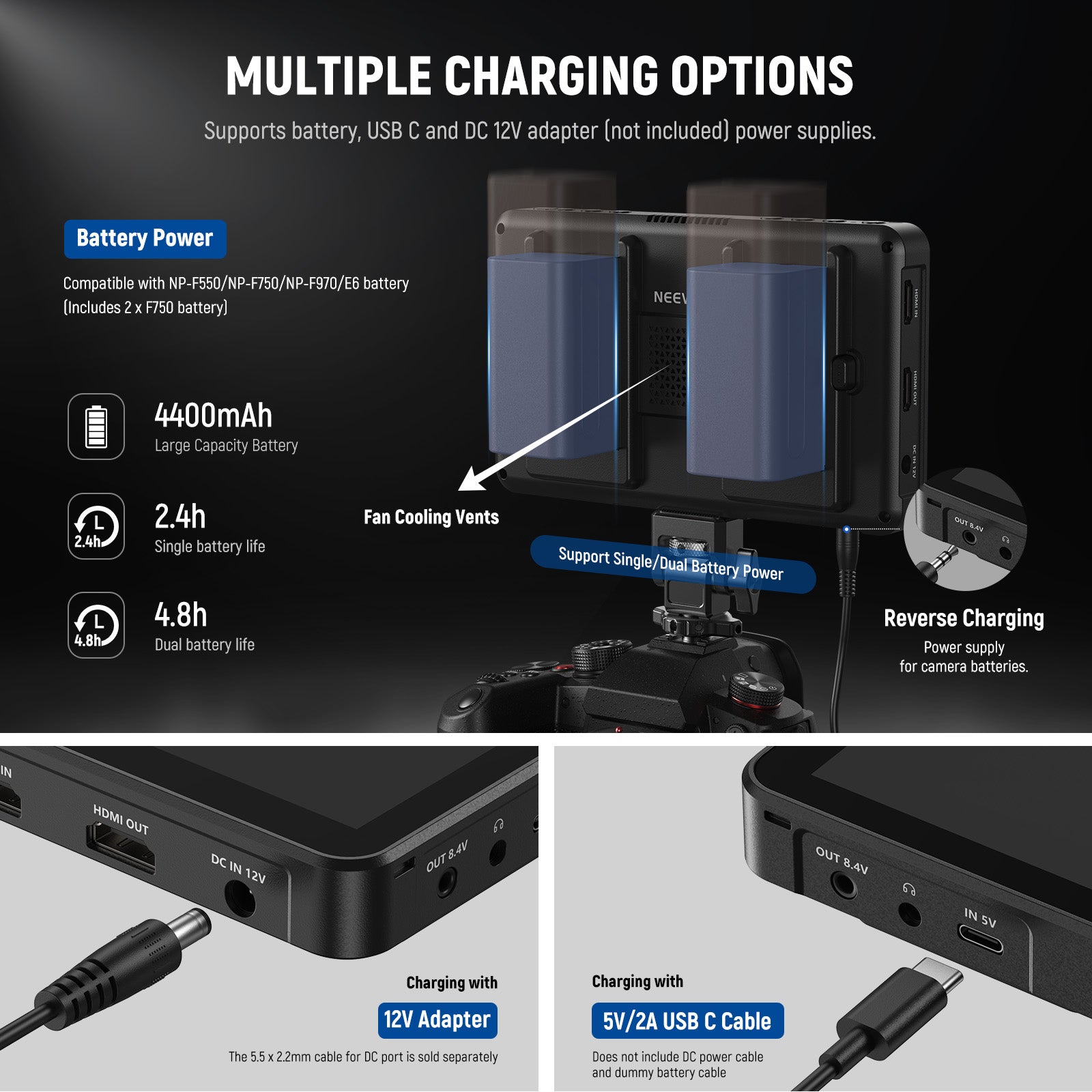

  • Versatile Power Supply Options- The DSLR monitor supports NP-F battery compatibility (NP-F550/750/970), DC port (cable not included), and Type C charging. The two 4400mAh NP-F750 batteries provide 2.4 hours of runtime each or 4.8 hours combined, and can be charged using 5V/3A or higher fast chargers or portable chargers (3A output) and the included USB to Type C cable. The monitor also works as a dummy battery for camera via a DC 8V/1.5A output for prolonged outdoor filming
  • 180° Adjustable & Enhanced Cooling- Equipped with 1/4" screw holes on the bottom and side, the DSLR monitor offers flexible mounting options and includes a cold shoe mount for 180° adjustment. Additionally, the built in cooling fans efficiently dissipate heat for extended use

Specifications

  • Model: F700
  • Resolution: 1920x1080 pixels
  • Dot Pitch: 0.0804(H)x0.0804(W)(mm)
  • Aspect Ratio: 16:9
  • Brightness: 2000nit ±10% (actual measured brightness)
  • Contrast Ratio: 1000:1
  • Viewing Angle: >160°H/160°V; 80°/80°(L/R) 80°/80°(U/D)
  • Input: HDMI
  • Output: HDMI, 3.5mm headphone jack
  • Power Input/Output:
    5.5mm DC Input Interface: DC- 12-26V (cannot be used as a dummy battery when in low voltage output)
    2.5mm DC Output Interface: DC 8.4V (can connect a dummy battery power cord to the camera via the DC power output interface, significantly extending the camera's battery life)
  • Type C Input Interface: Supports 5V/3A and higher fast chargers or portable chargers (3A output)
  • HDMI Input Format Support: 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (25/24Hz)
  • Total Power Consumption: ≤22W (without DC 8.4V output)
  • Operating Temperature: -20°C-55°C
  • Storage Temperature: -30°C-65°C

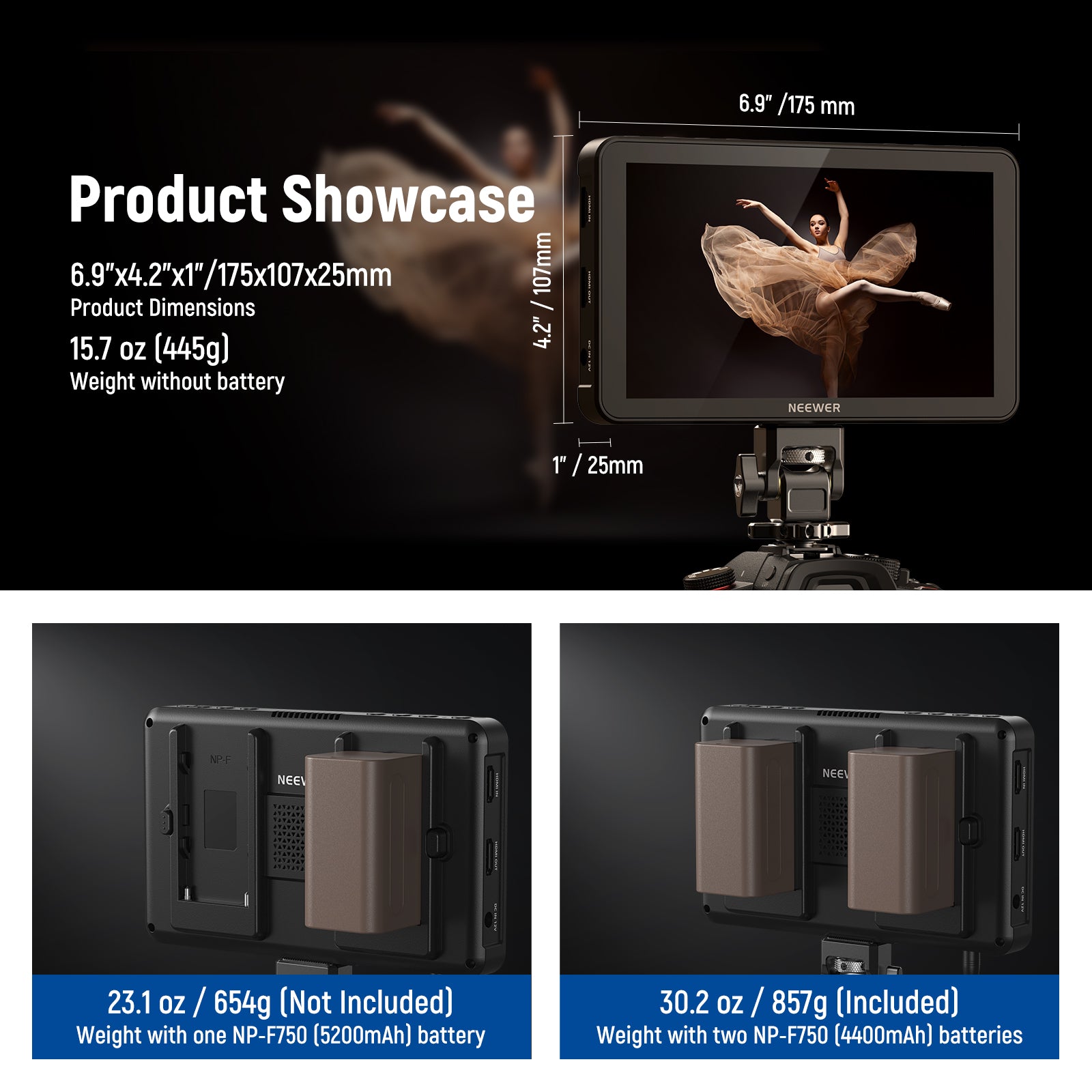

  • Dimensions: 6.9"x4.2"x1"/175x107x25mm

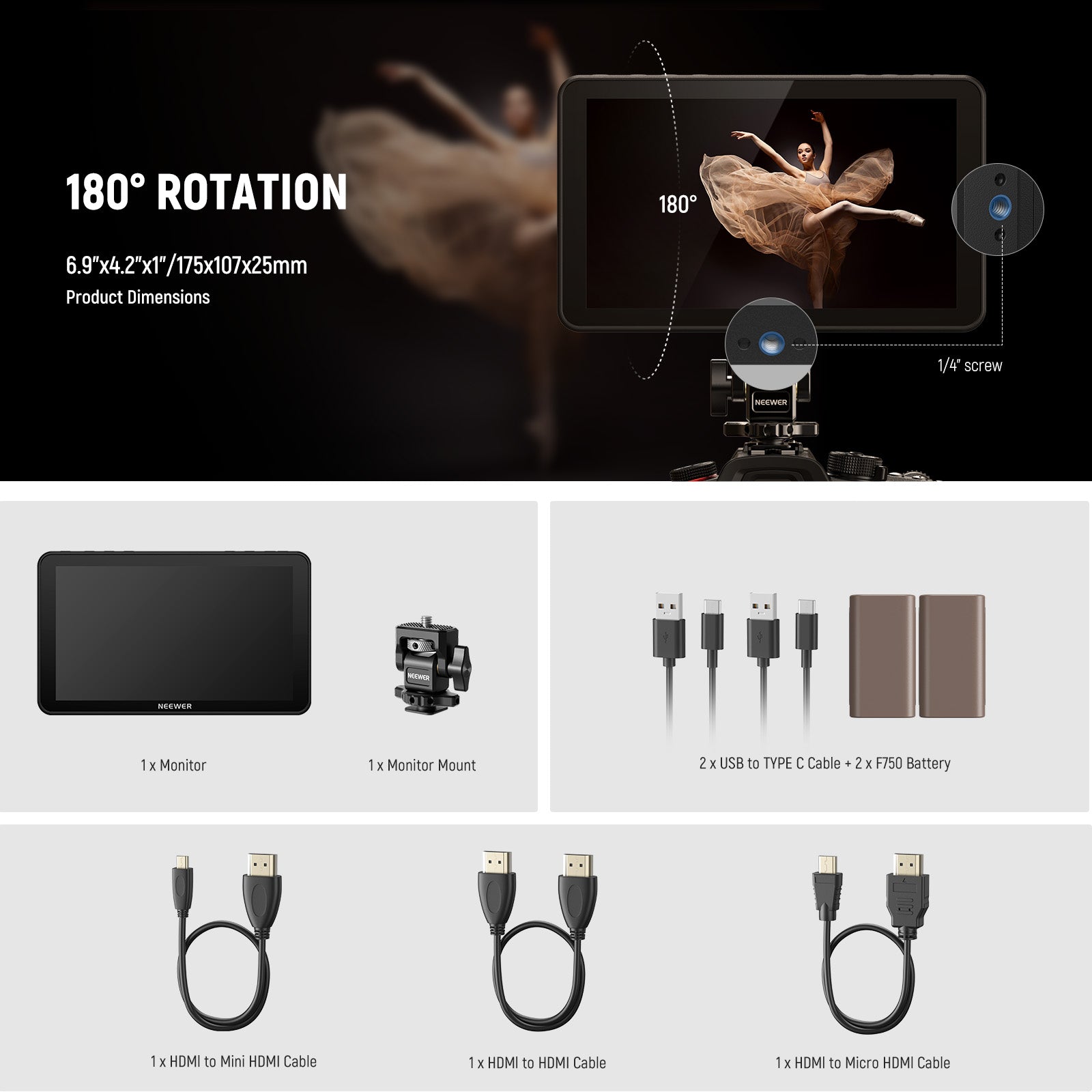

Package Contents

  • 1 x Monitor
  • 1 x Monitor Mount
  • 2 x NP-F750 Battery
  • 2 x USB to Type C Charging Cable
  • 1 x HDMI to HDMI Cable
  • 1 x HDMI to Micro-HDMI Cable
  • 1 x HDMI to Mini-HDMI Cable
