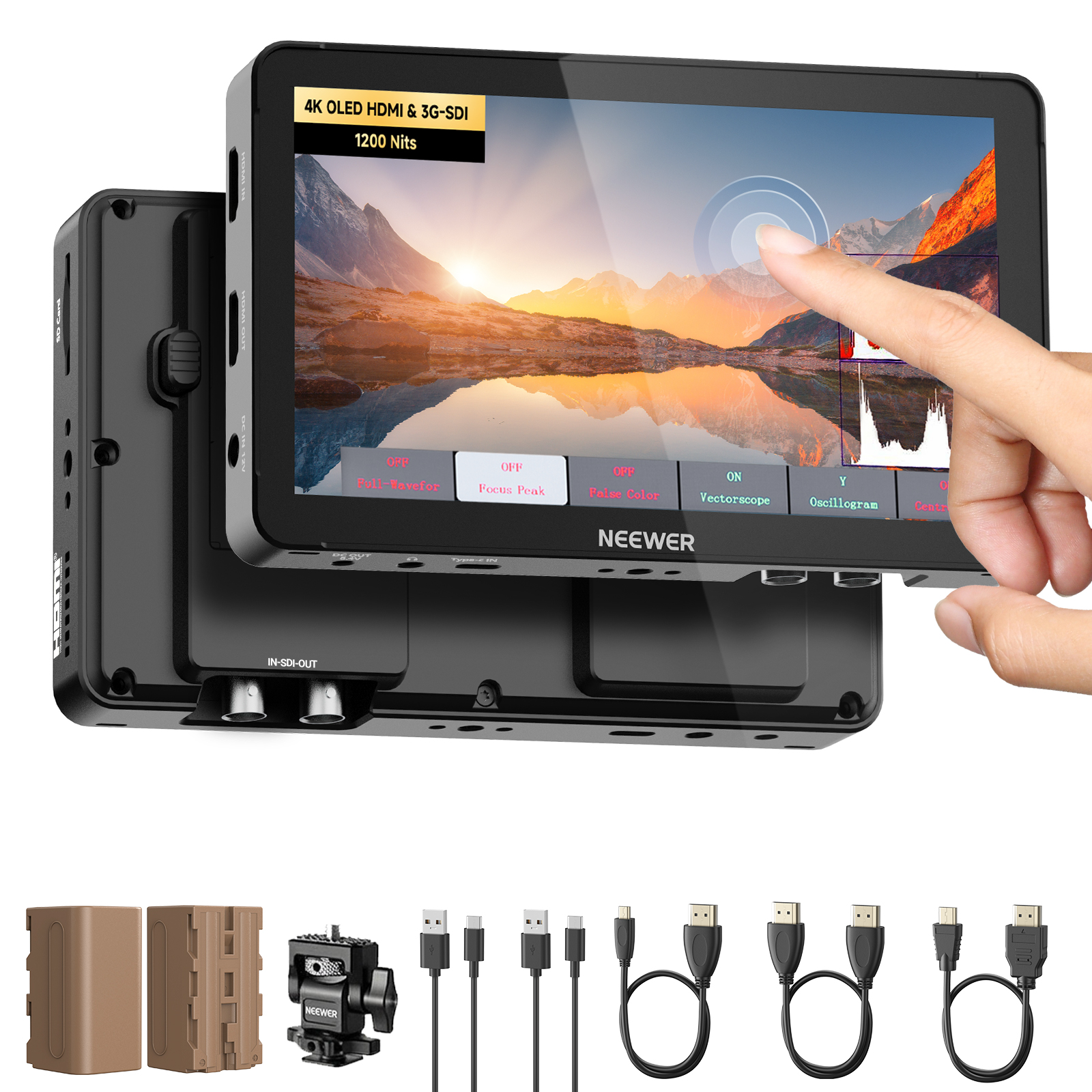

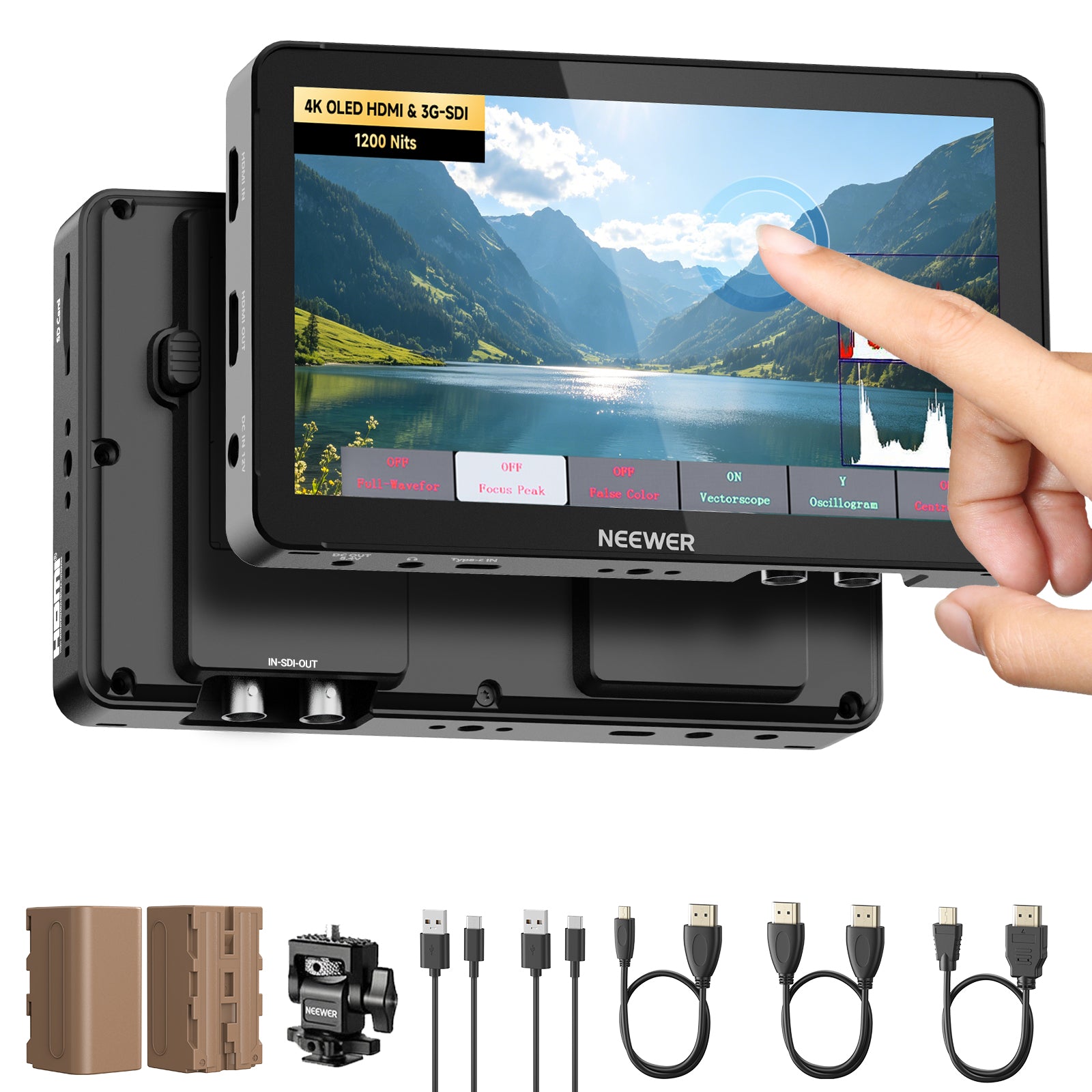

NEEWER F700U 7" Camera Field Monitor
Regular price
$379.99
More stock coming soon
⚡️Mother’s Day Savings expire in:
0
Day
00
Hour
00
Min
00
Sec
SKU: 66609604
NEEWER products purchased from the official website are covered by a 2-year warranty and 30-day hassle-free returns.
Shipping from local warehouse based on your area, normally it takes 3-7 Business days for the delivery. Learn More
To download the product firmware or manual, please visit our Download Center.
Due to the impact of tariffs and logistics costs, prices vary by location.
⚠️WARNING:This product can expose you to chemicals including [Lead and Phthalates], which
is [are] known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov.
Description

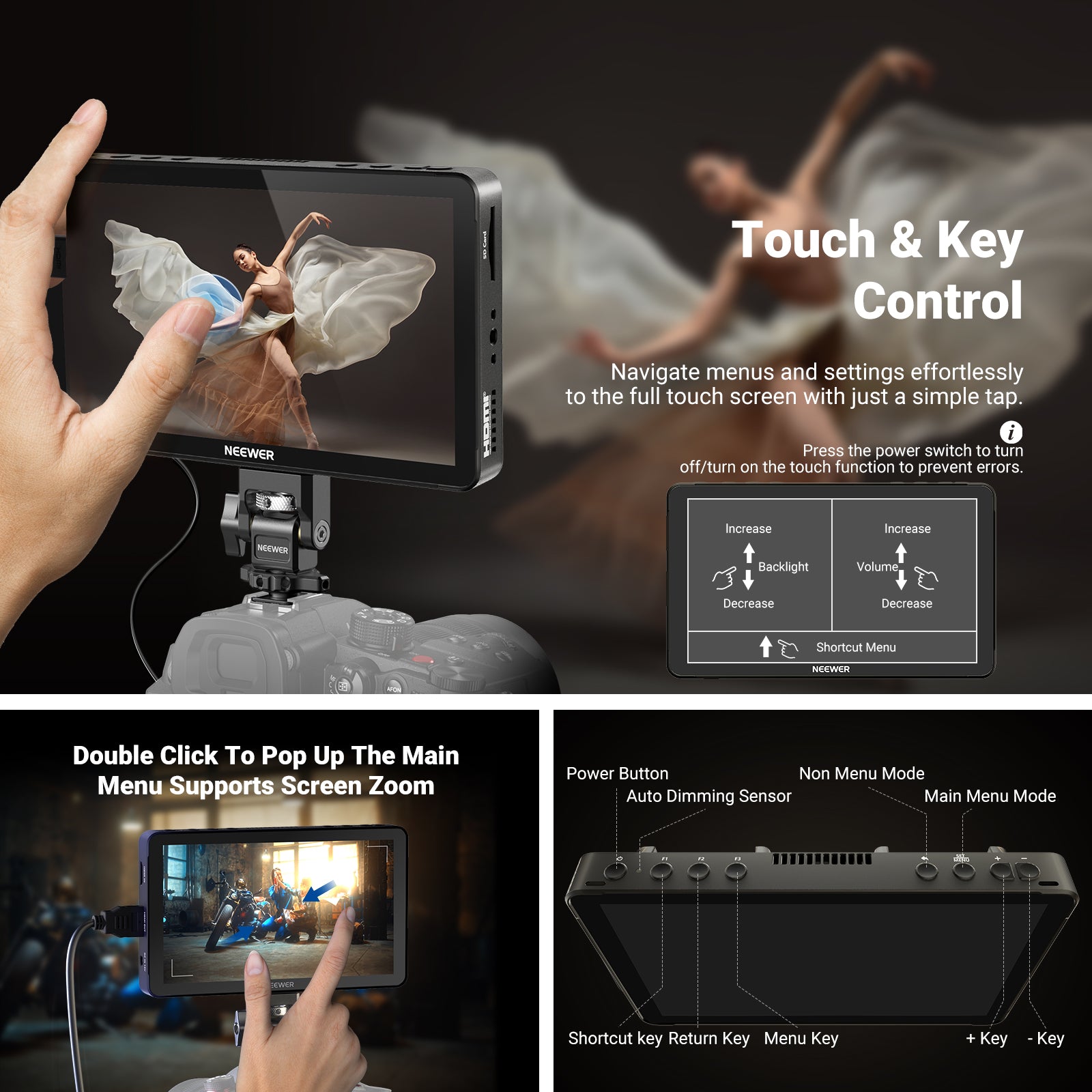

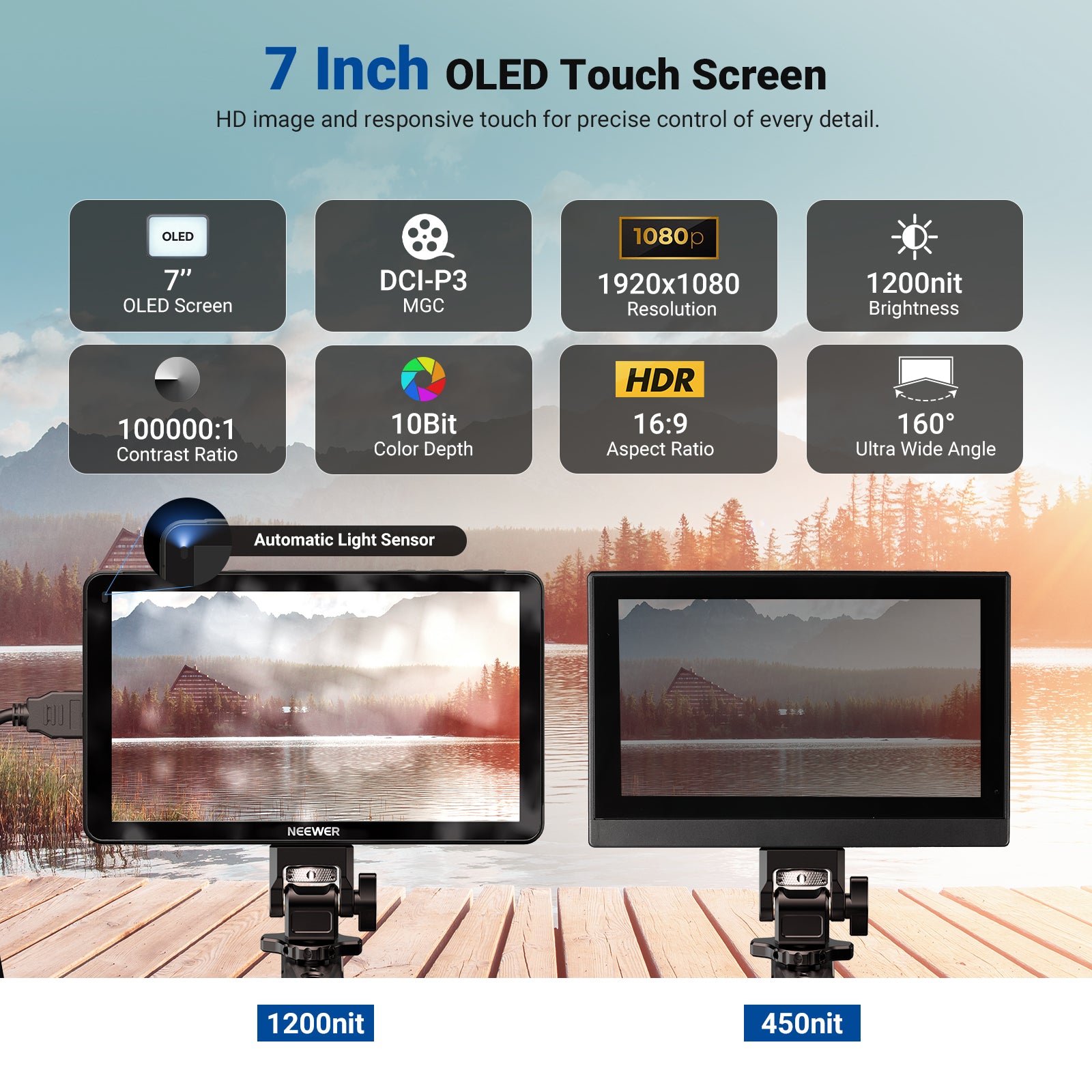

- 7" OLED Touch Screen Monitor- The 4K camera field monitor features a high brightness touch screen with 1920×1080, 1200 nits brightness, 100,000:1 contrast, and 160° viewing angles. Manual and auto backlight adjustment ensures clear visibility for precise frame by frame control

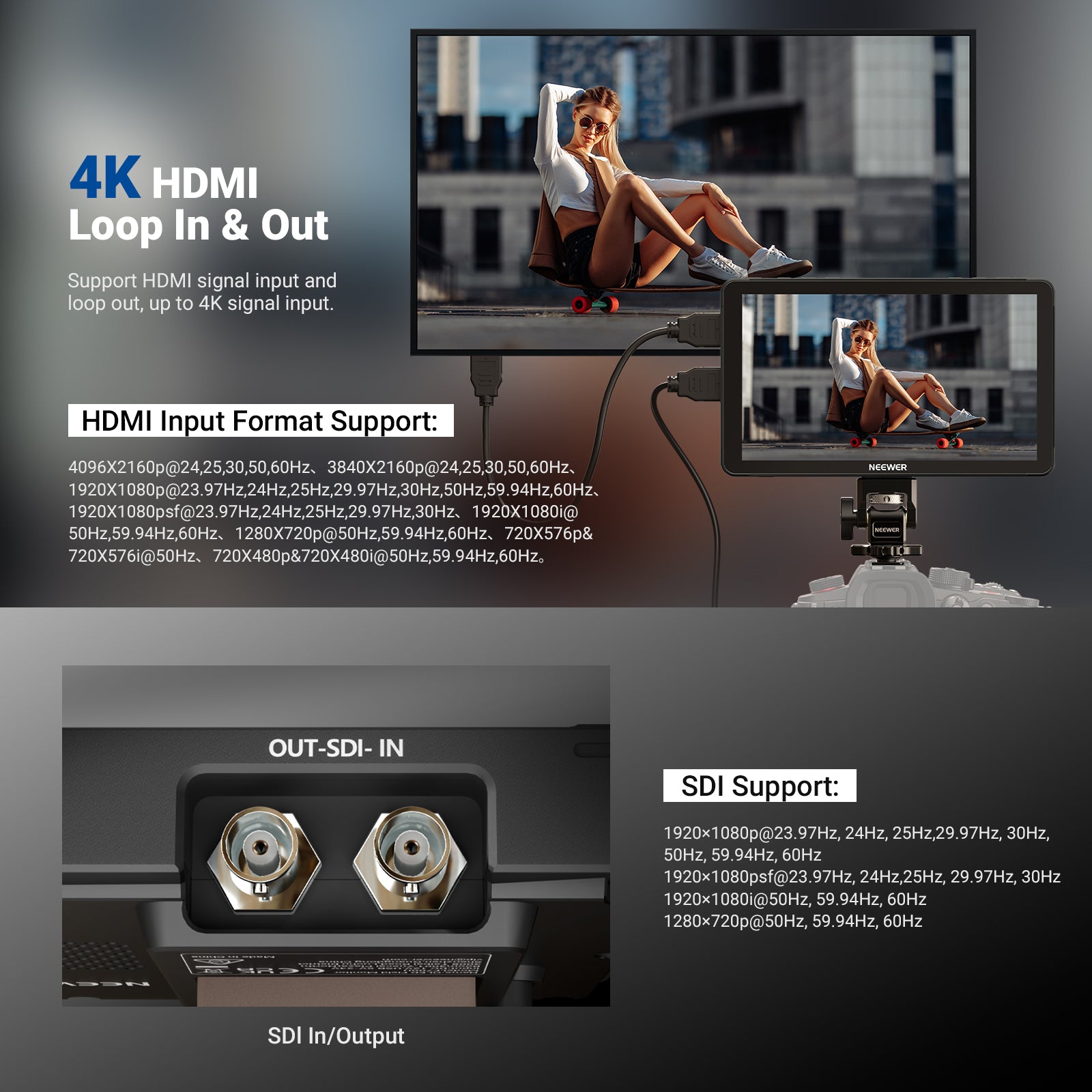

- 4K HDMI Input & Loop Out- Supports smooth 4K HDMI video signal transmission with a 3.5mm headphone jack for real time audio monitoring. Essential/must have camera gear & photography accessories for videographers, content creators, and influencers
- SDI Input & Output- Connect your camera via SDI cable (not included) for lossless professional video transmission, supporting multiple HD formats up to 1920×1080. Ideal camera video equipment for professional photography and videography

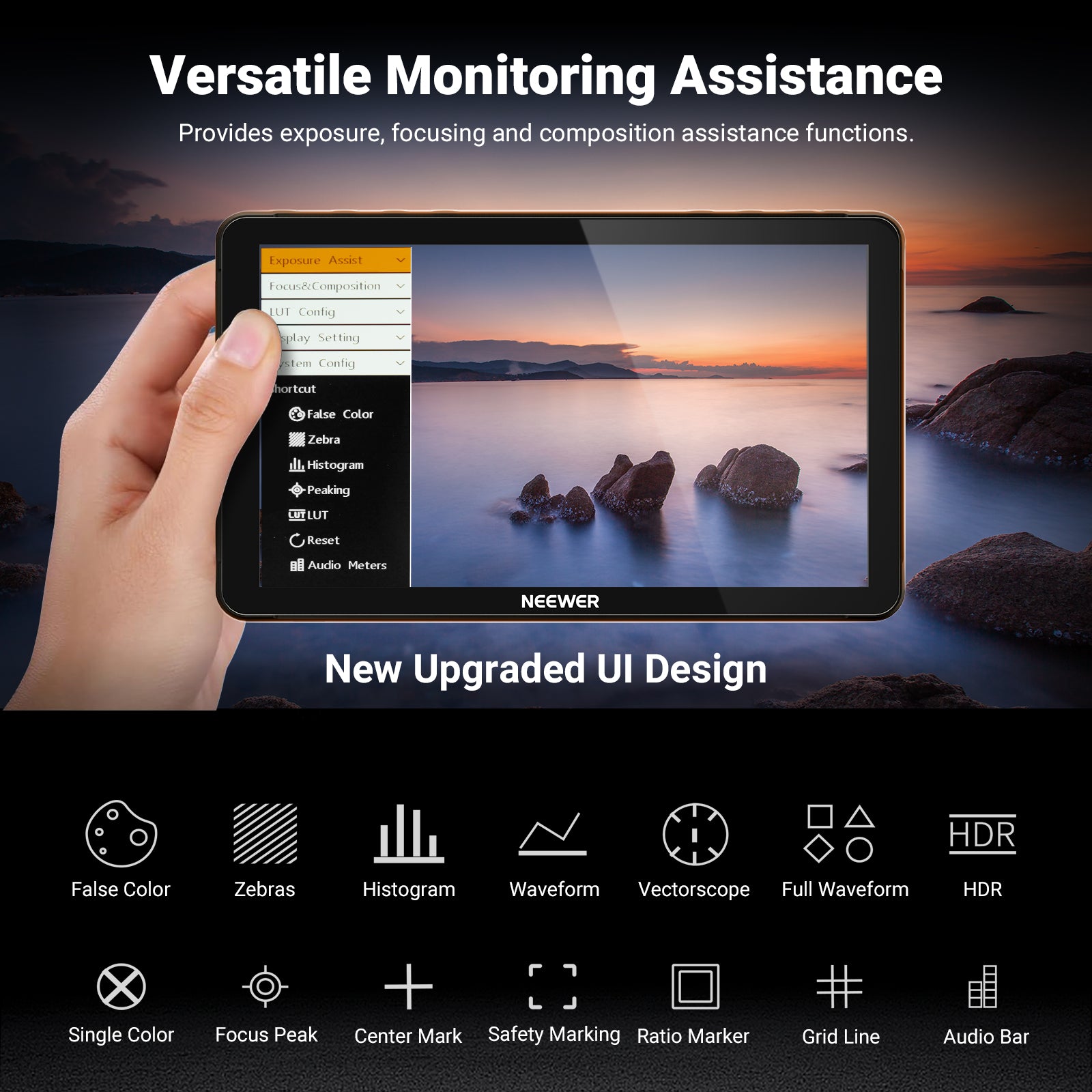

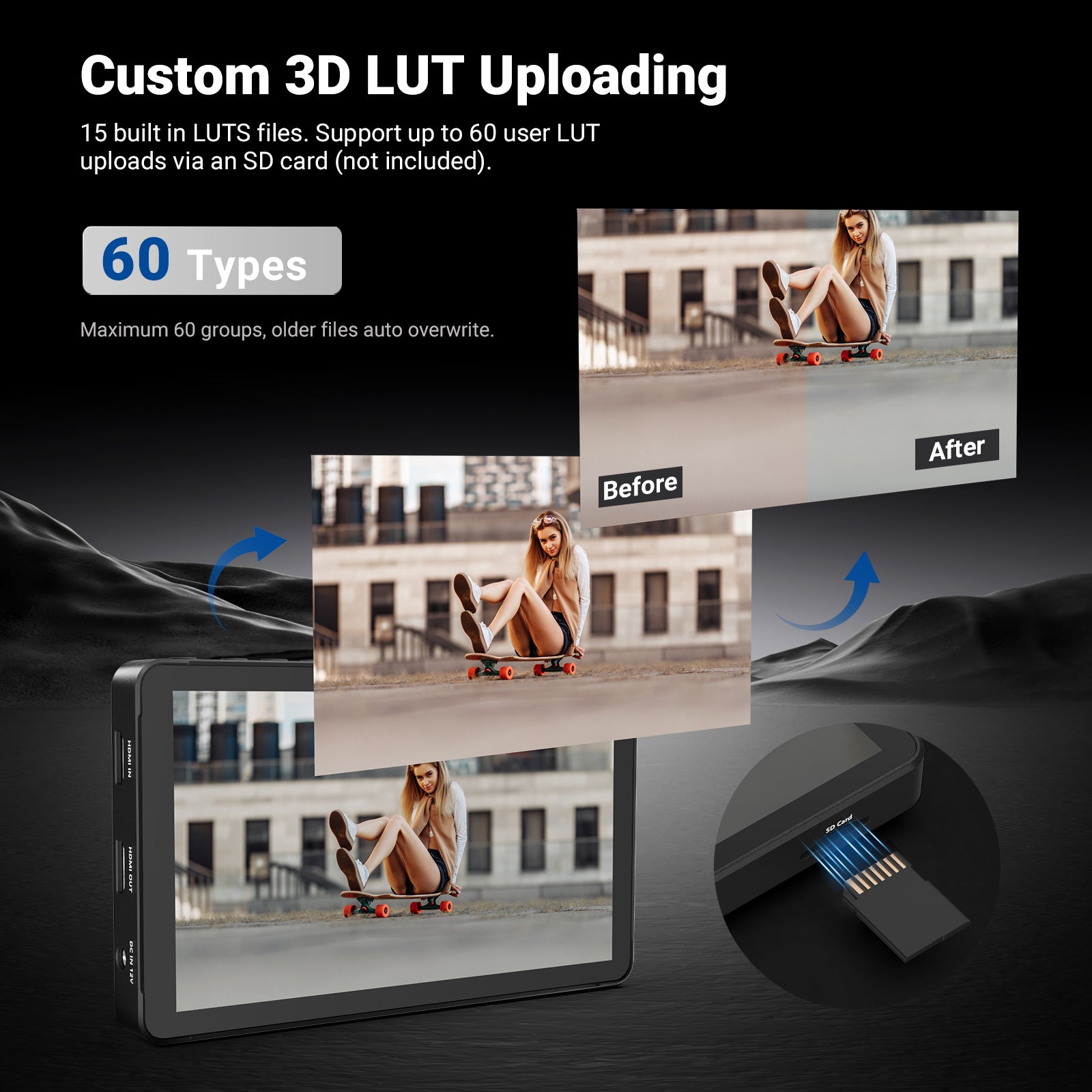

- Comprehensive Monitoring Tools- Peaking focus, false color, zebra, histogram, waveform, vectorscope, HDR, monochrome display, and audio levels for precise exposure and focus. Includes 15 built in 3D LUTs and supports up to 60 custom LUTs via SD card (not included) and firmware upgrade

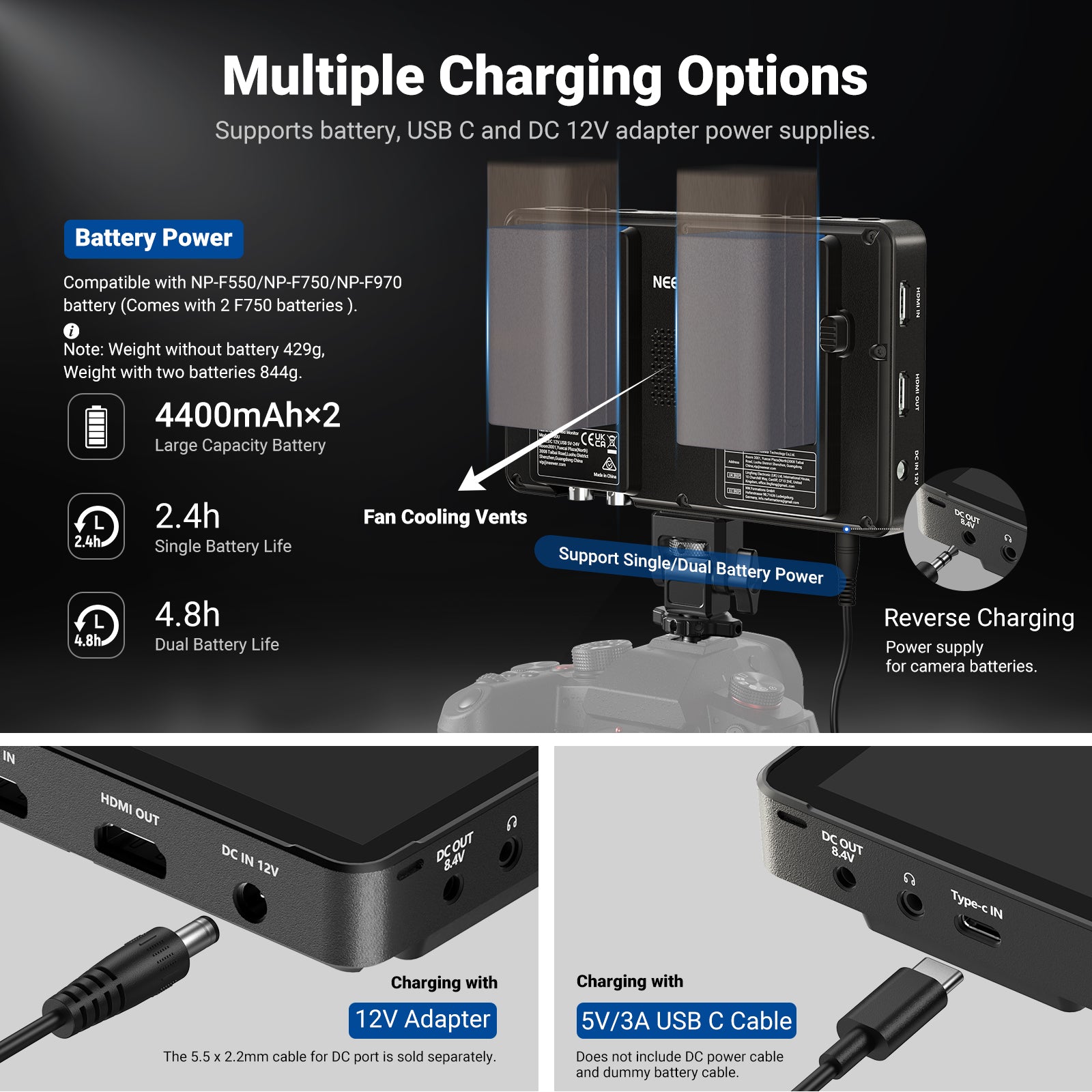

- Various Power Options- Powered by NP-F series batteries (2 4400mAh NP-F750 batteries included), DC 12V adapter (not included), or via USB C. Supports 5V/3A or higher fast charging. Note: Charge the batteries fully before first use to maximize their lifespan
Specifications
- Model: F700U
- Display: OLED
- Resolution: 1920 × 1080pixels
- Pixel Pitch: 0.0804 (H) × 0.0804 (W) mm
- Aspect Ratio: 16:9
- Brightness: 1200nits ±10%
- Contrast Ratio: 100,000:1
- Color Depth: 10bit
- Viewing Angle: >160° (H) / 160° (V)
- Input: HDMI, SDI
- Output: HDMI, SDI, 3.5mm headphone output
- 5.5mm DC Input Port: DC 7–24V (Dummy battery output is not supported at low input voltage.)
- 2.5mm DC Output Port: Actual output DC 8.4V
- USB C Input Port: Supports powering the device with a 5V/3A or higher fast charger or a PD portable charger.
- Power Consumption: 10W (without DC 8.4V output)
- Dimensions: 7.1"x4.2"x1.1"/ 180x107x29mm
- Operating Temperature: 20°C to 55°C
- Storage Temperature: 30°C to 65°C

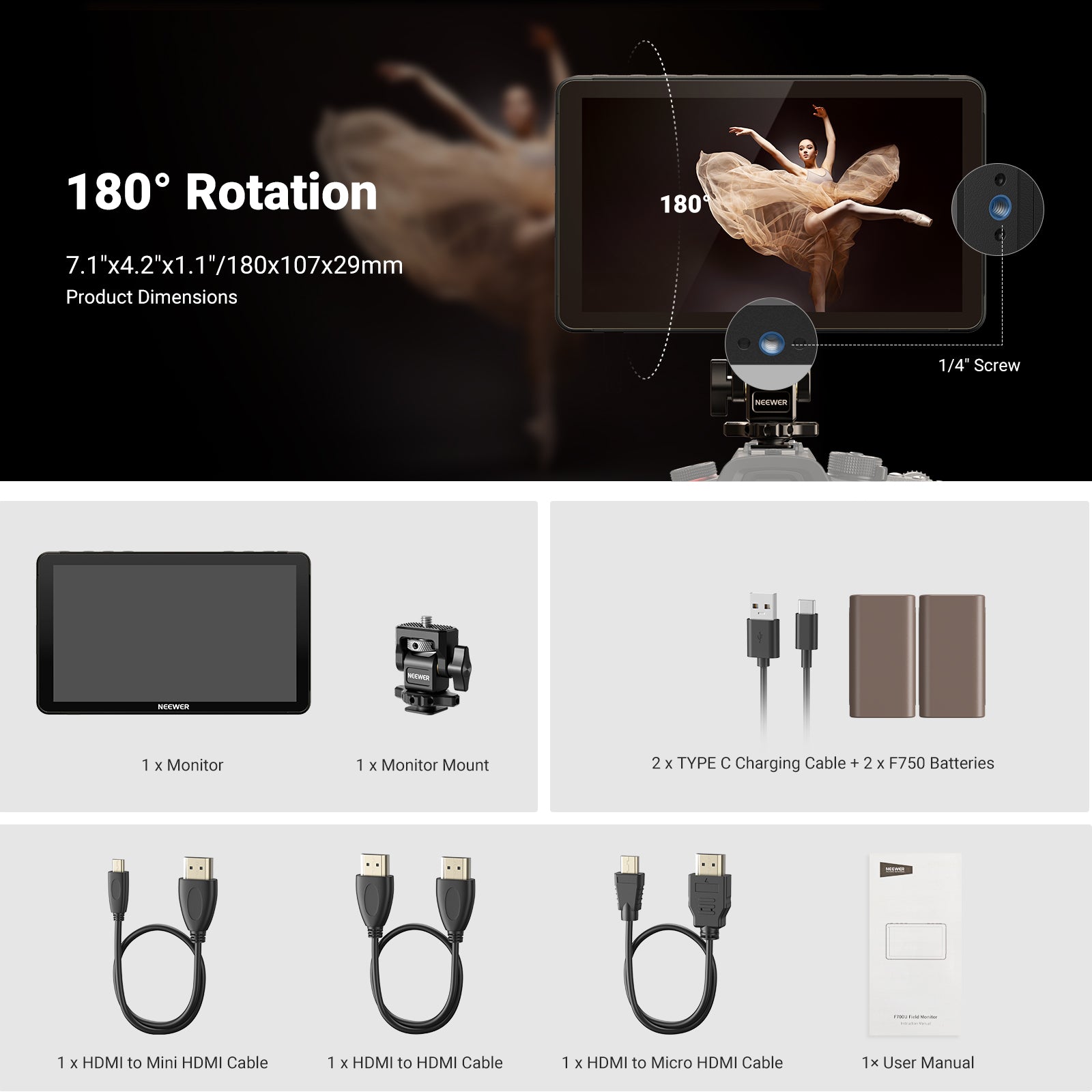

Package Contents

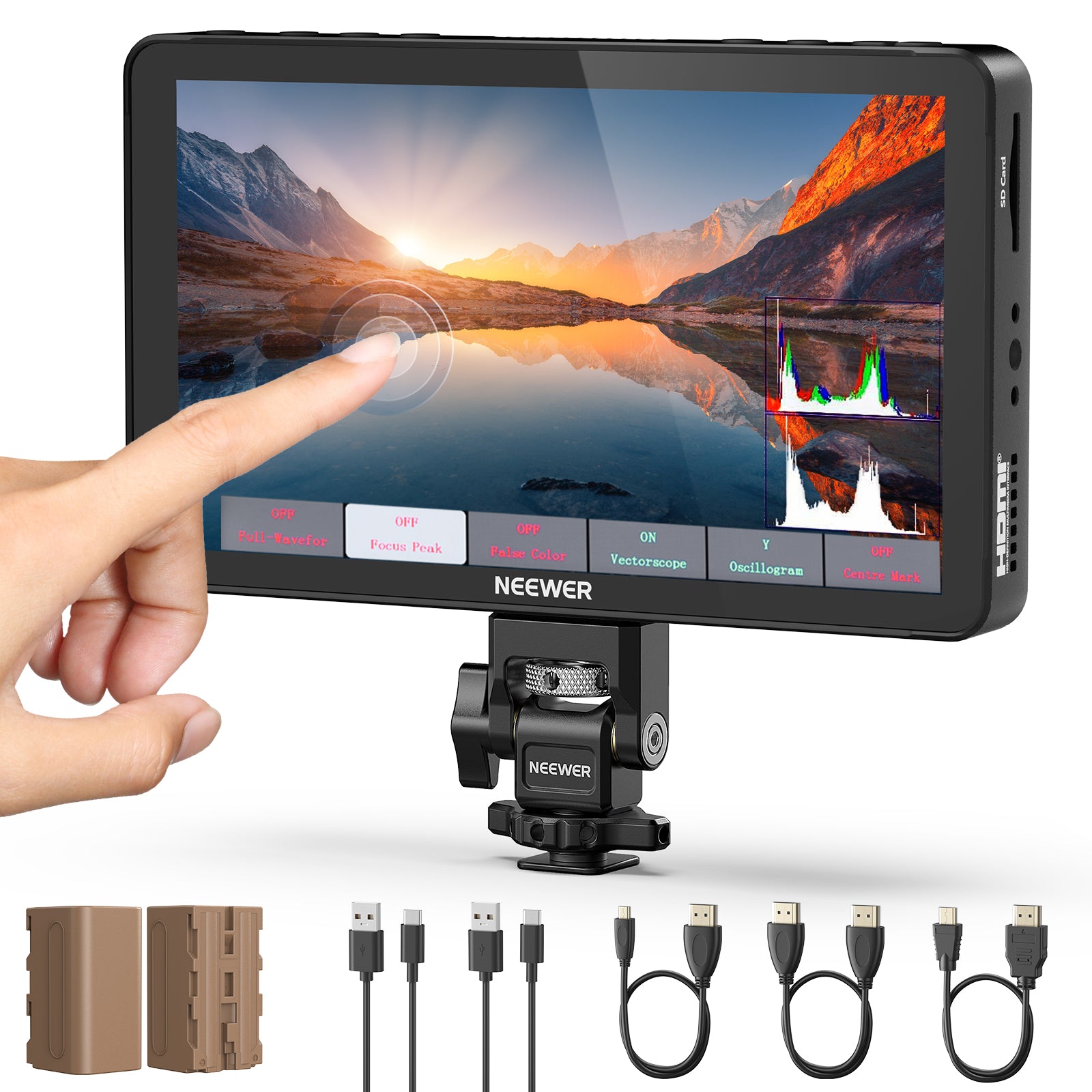

- 1 x Monitor
- 2 x 4400mAh NP-F750 Batteries
- 1 x Adapter Mount
- 1 x USB A to Type C Cable
- 1 x HDMI to Mini HDMI Cable
- 1 x HDMI to Micro HDMI Cable
- 1 x HDMI to HDMI Cable
