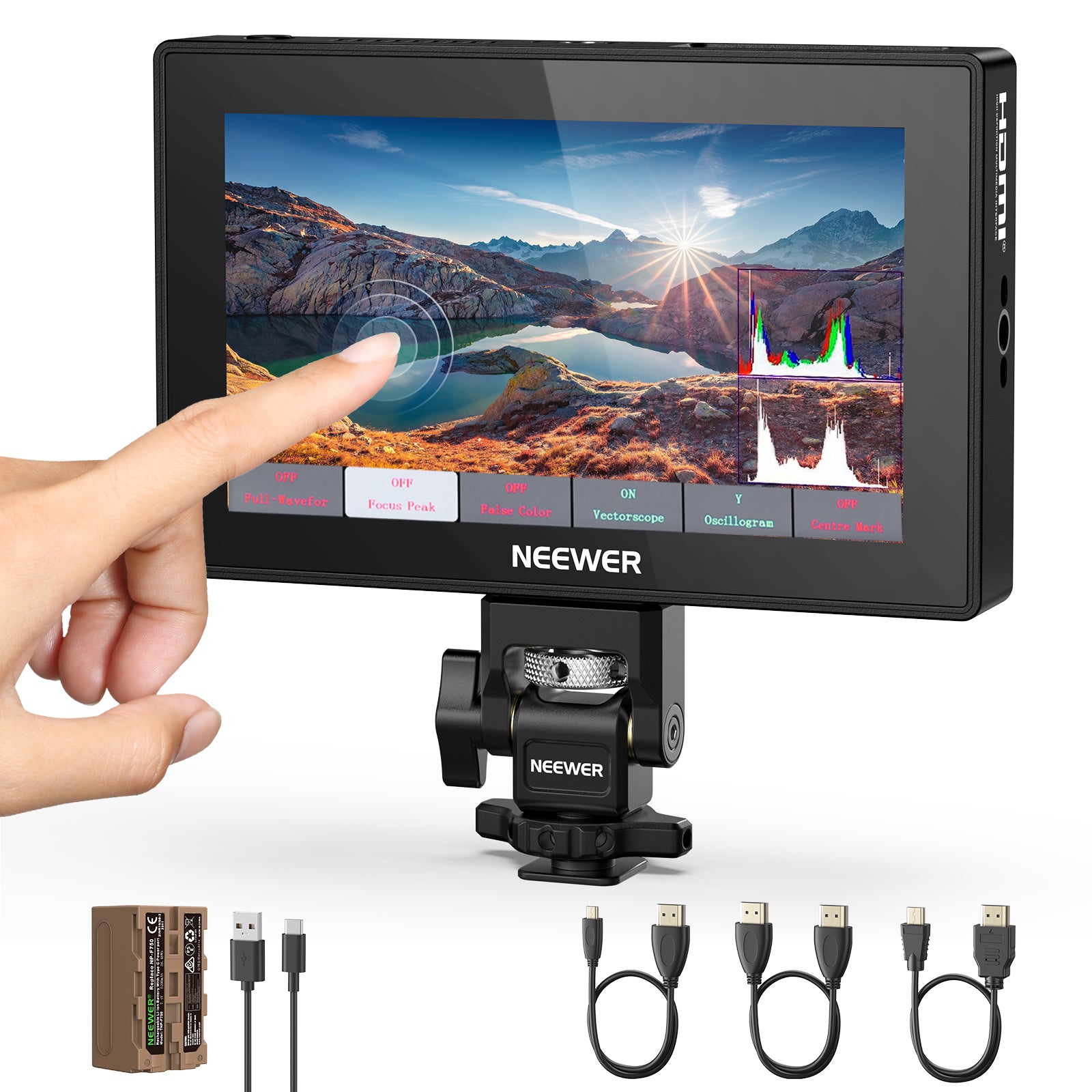

NEEWER F400 PRO 6 Inch Camera Field Monitor

The product discount will be automatically applied once you add it to the cart.
SKU: 66602975
2 in stock


All Neewer products carry a 2-Year Warranty and 45-day Return. Learn more at Warranty Policy.

Shipping Policy

Shipping from local warehouse based on your area, normally it takes 2~10 days for the delivery, Learn more at Shipping Policy.

Firmware & Manual

To download the product firmware or manual, please visit our Download Center.


Due to the impact of tariffs and logistics costs, prices vary by location.

WARNING:This product can expose you to chemicals including [Lead and Phthalates], which
is [are] known to the State of California to cause cancer. For more information go to


  • 160° Wide Viewing Angle, Sharper Image and More Detail- The 6 inch LCD high definition full screen with 1920 x 1080 resolution, 500cd/m² brightness, 1000:1 contrast ratio, and 8 bit color depth for clear, vivid images with true to life details, no matter mounted on DSLR camera, mirrorless cameras or gimbal stabilizer. The 160° ultra wide viewing enhances detail clarity and a removable sunshade to reduce glare outdoors. Note: This monitor is only compatible with Canon Nikon Sony cameras.

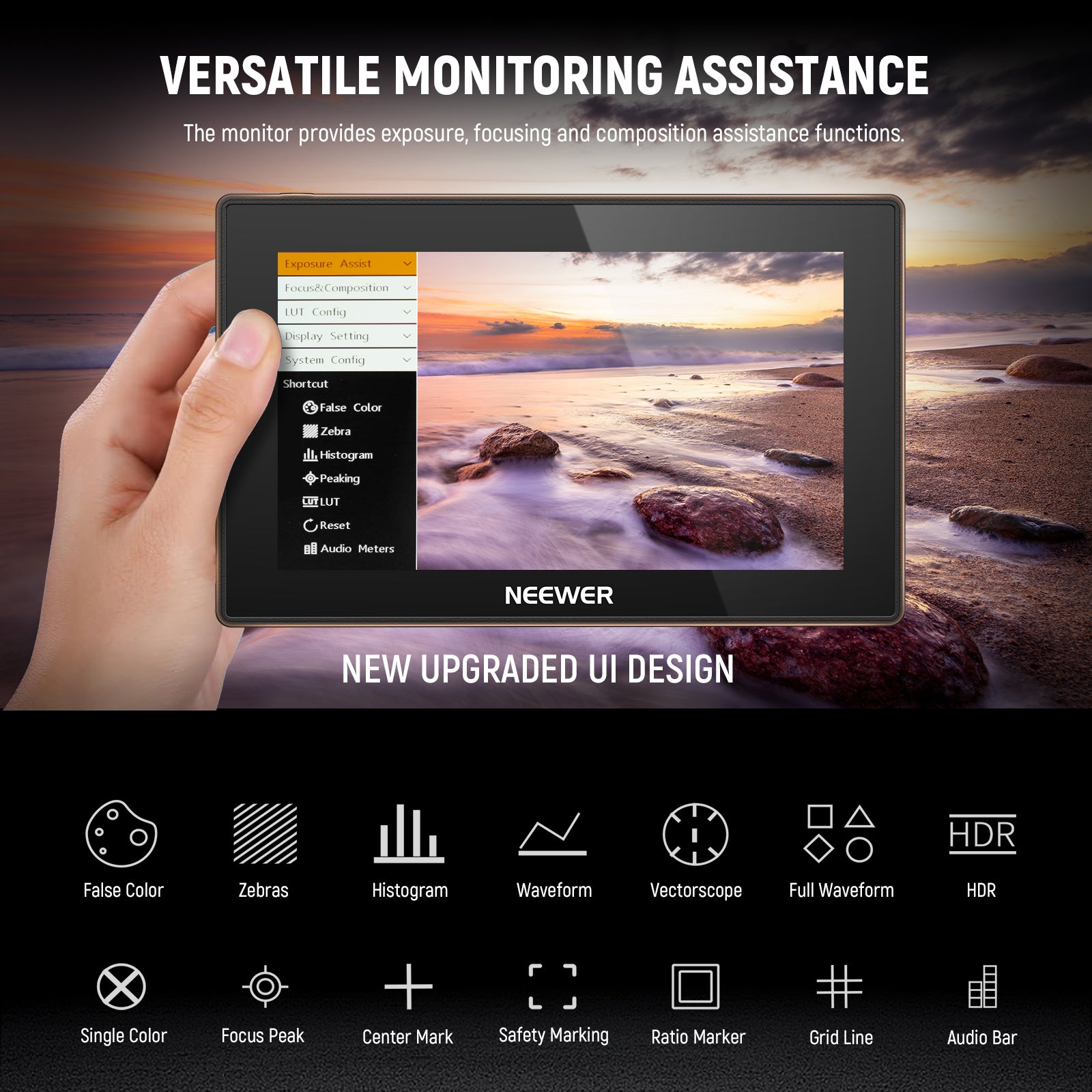

  • Professional & Versatile Monitoring- The F400 Pro comes with professional grade functions like RGB Waveform Scope, Vector Scope, Histogram, Nine Grid, Peaking Focus Assist, False Colors, Exposure, Zoom, Embedded Audio and more, to achieve the desired results in a single step and simplify the post production process. The customizable function buttons (F1, F2, F3) for quick access to frequently used features. Firmware upgraded via a Type C cable (not included)

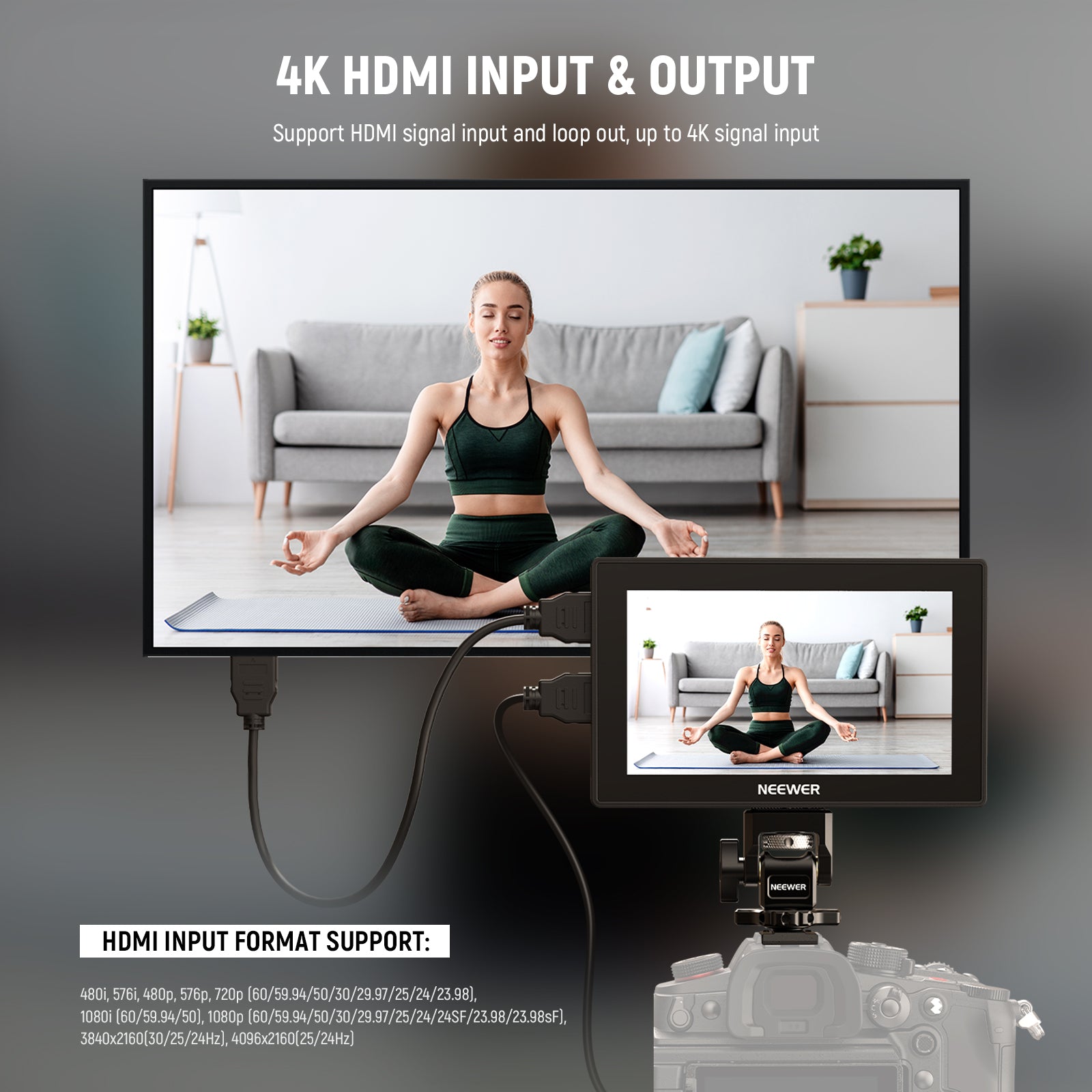

  • Support 4K HDMI/AV Signal Input- Both the HDMI and AV input interfaces for real time monitoring without delay while maintaining the original video quality. This small HD monitor supports HDMI input of 4K UHD 3840X2160p (30/29.97/25/24/23.98Hz), 4096X2160p (24Hz), 480i/480p/576i/576p/720p/1080i/1080p and AV analog signal input of PAL, NTSV, SECAM and other systems. Also supports simultaneous audio monitoring via a 3.5mm headphone jack (headphone not included)
  • 360° Rotation & 270° Tilt- Mount the L shaped bracket to the monitor via its 1/4" screw hole for 360° rotatable and 270° monitoring angles. The included double nut cold shoe mount can also be attached to the monitor, and tightened by hand to be easily mounted to your DSLR camera or even a gimbal stabilizer. The L shaped bracket is also equipped with a cold shoe on the side to attach a microphone, LED light, and more

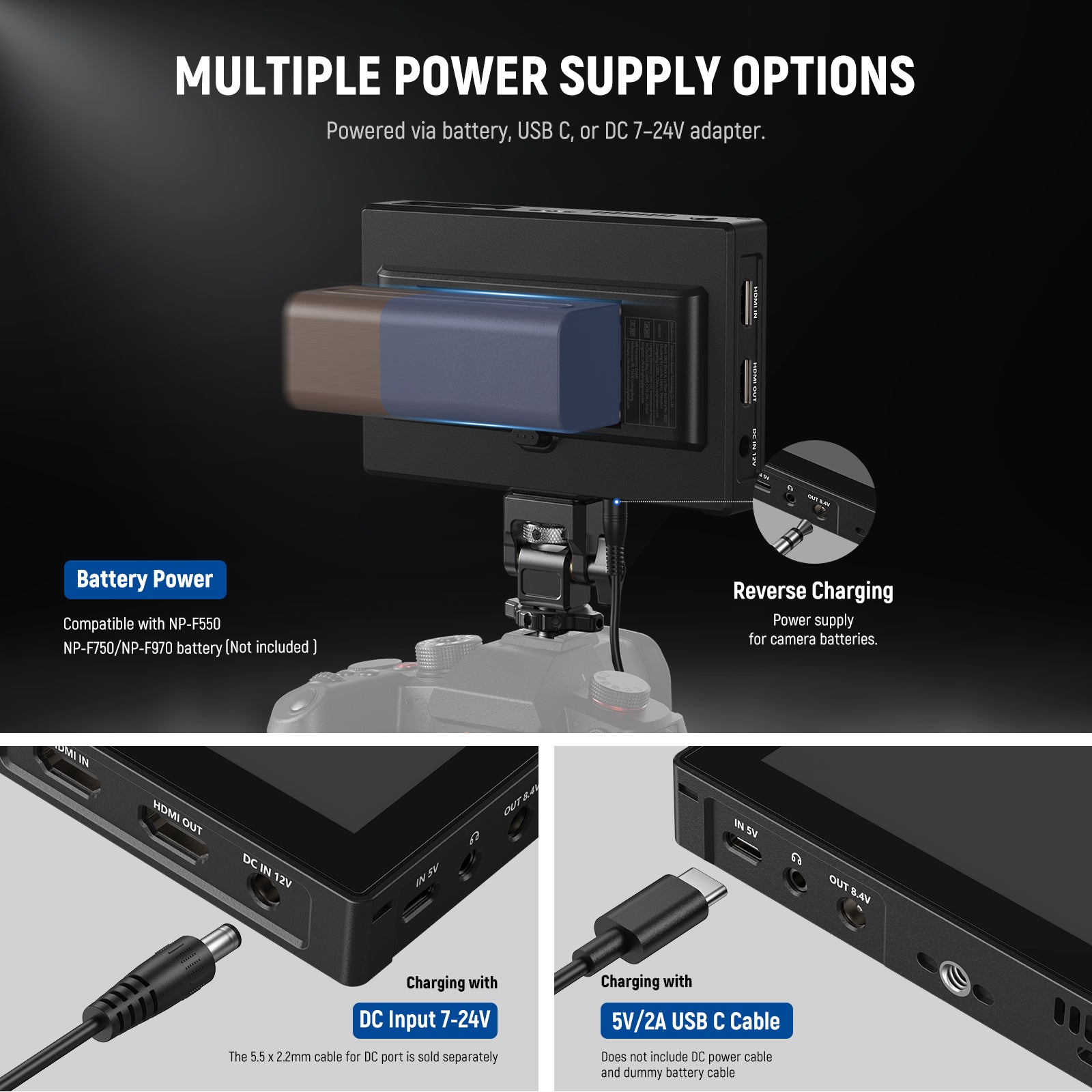

  • Multiple Power Supply Options- Support powered either via a DC 12V power adapter or the included NP-F550 replacement battery, also compatible with Sony NP-F550 F750 F970 Canon E6 lithium batteries. Also support still charging reversely with DC OUT 8.4V for cameras via a dummy battery adapter power cable (not included). The rear heat sinks effectively prevent overheating and extend the lifespan
  • More From NEEWER- Please consider our MA006 MA002 Camera Monitor Mount with Cold Shoe & 1/4" Screw, ST25C Magic Arm and Super Clamp Set, PS099E 6800mAh V Mount Battery and NC010 D Tap to DC Power Cord for outdoor power supply, and TP74 TP75 Professional Video Tripod with Fluid Head for stable mounting. Also choose our camera cages CA011 for Sony FX3 FX30 CA031 for Canon R50 CA041 for Nikon Z8 to enhance your filmmaking and video recording


  • Model: F400 PRO
  • Resolution: 1920 x 1080 pixels
  • Dot Pitch: 0.069(H) x 0.069 (V) mm
  • Aspect Ratio: 16:9
  • Brightness: 500nits
  • Contrast: 1000:1
  • Viewing Angles: 80°/80° (L/R) 80°/80°(U/D)
  • Input: HDMI/AV
  • Output:3.5mm Headphone Output
  • Power Input: DC IN 12V 2A
  • Power Output: DC OUT 8.4V
  • HDMI Input Format: 480i/480p/576i/576p/720p(60/59.94/50/30/29/25/24/23.98)1080i(60/59.94/50)1080p(60/59.94/50/
  • 30/29.97/25/24/24sF/23.98/23.98sf/4K UHD 3840X2160p(30/29.97/25/24/23.98)/4096X2160p (24Hz)
  • Overall Power Consumption: S9W (without 8.4V DC output)
  • Size: 160 x 89 x 20mm
  • Operating Temperature: -20°C-55°C
  • Storage Temperature: -30°C-65°C

Main Functions

  • RGB waveform/RGB vector
  • Histogram
  • Embedded Audio
  • Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
  • False Colors/Exposure/Nine Grid/Pixel to Pixel
  • Aspect (auto,2.35:1,1.85:1,3:2,4:3,16:9,16:10)
  • Scan Mode (Under Scan, Over Scan)
  • Check Field (Red Green Blue Mono)
  • Center Marker/Marker Color (Red Green Blue White Black)
  • Zoom (4x,3x,2x,1.5X)
  • Aspect Marker (1.85:1,2.35:1,3:2,4:3)
  • Safe Area (80%,85%,88%,90%,93%,95%)
  • Image Flip (H, V, H/V), Image Freeze

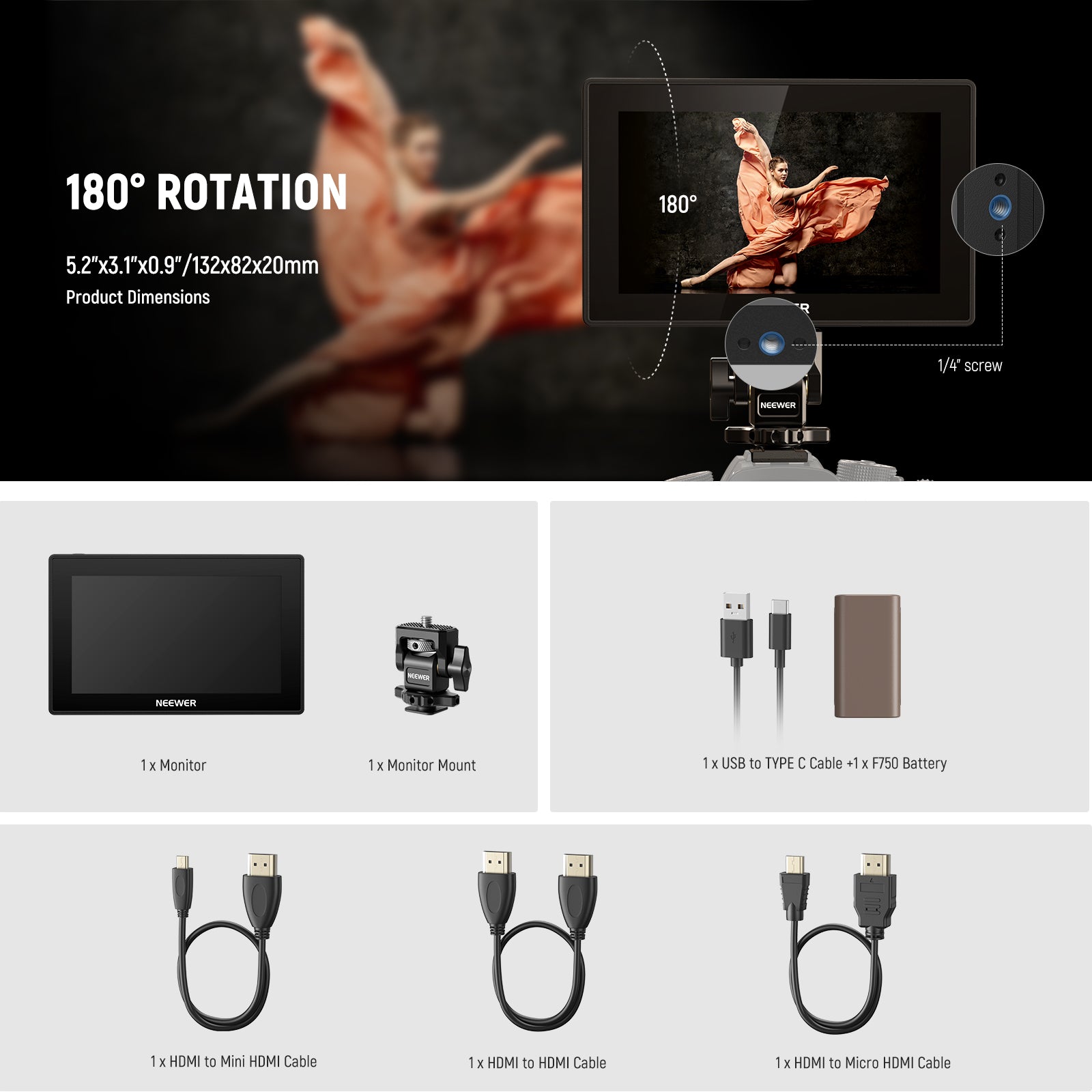

Package Contents

  • 1 x Monitor
  • 1 x Sunshade Hood
  • 1 x Sunshade Frame
  • 1 x L Shaped Bracket
  • 1 x Cold Shoe Mount
  • 1 x NP-F550 Battery
  • 1 x NP-F550 Battery Charger
  • 1 x HDMI to Mini HDMI Cable
  • 1 x HDMI to Micro HDMI Cable
  • 1 x 4.0mm to 5.5mm Adapter Cable
  • 1 x Audio Cable
  • 1 x Cleaning Cloth
