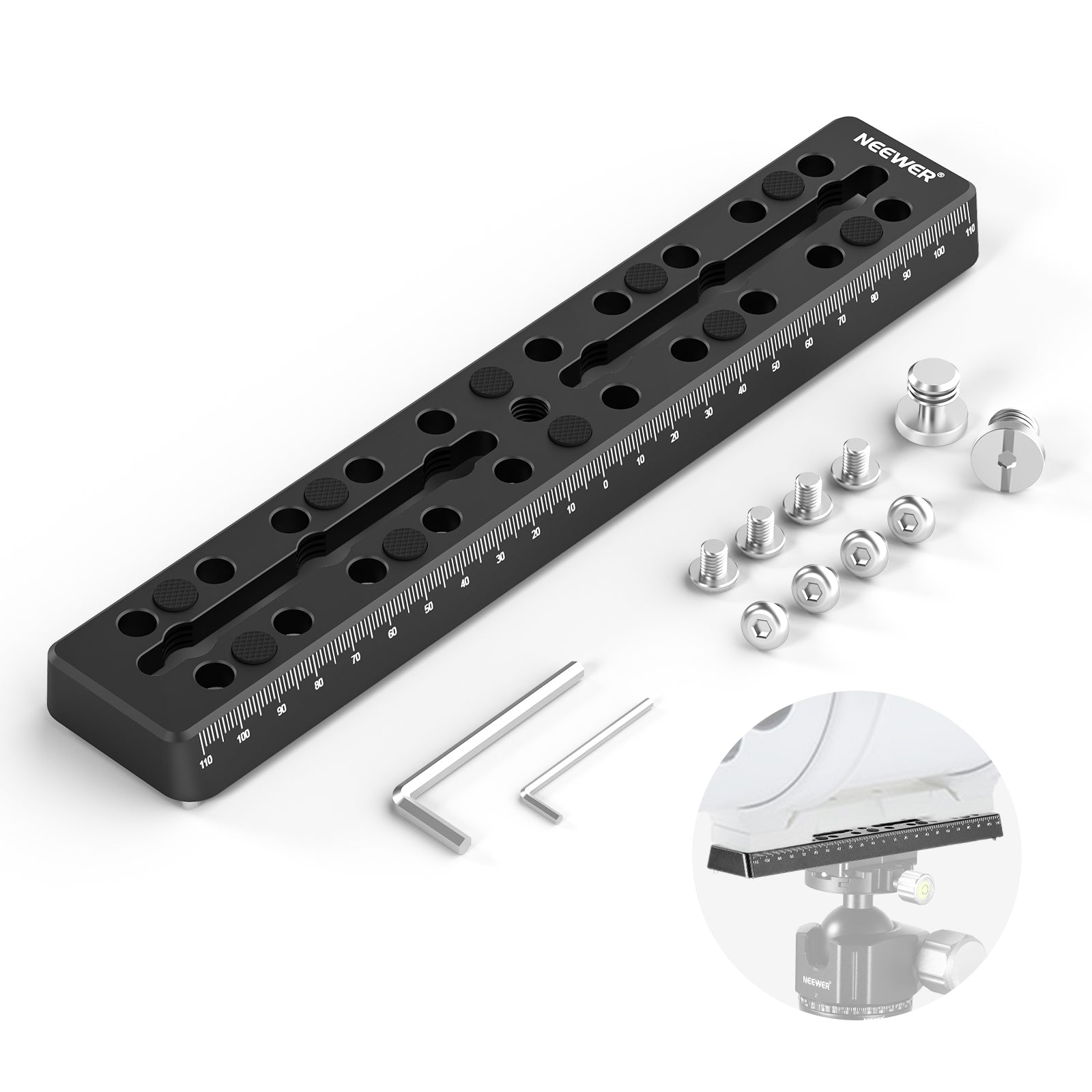

NEEWER QR003 9"/230mm Rail Bar Vixen Style Dovetail Plate

$35.49
The product discount will be automatically applied once you add it to the cart.
SKU: 66602074
Warranty

All Neewer products carry a 2-Year Warranty and 45-day Return. Learn more at Warranty Policy.
Shipping Policy

Shipping from local warehouse based on your area, normally it takes 2~10 days for the delivery, Learn more at Shipping Policy.
Firmware & Manual

To download the product firmware or manual, please visit our Download Center.
Information

Due to the impact of tariffs and logistics costs, prices vary by location.

⚠️WARNING:This product can expose you to chemicals including [Lead and Phthalates], which
is [are] known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov.
View details

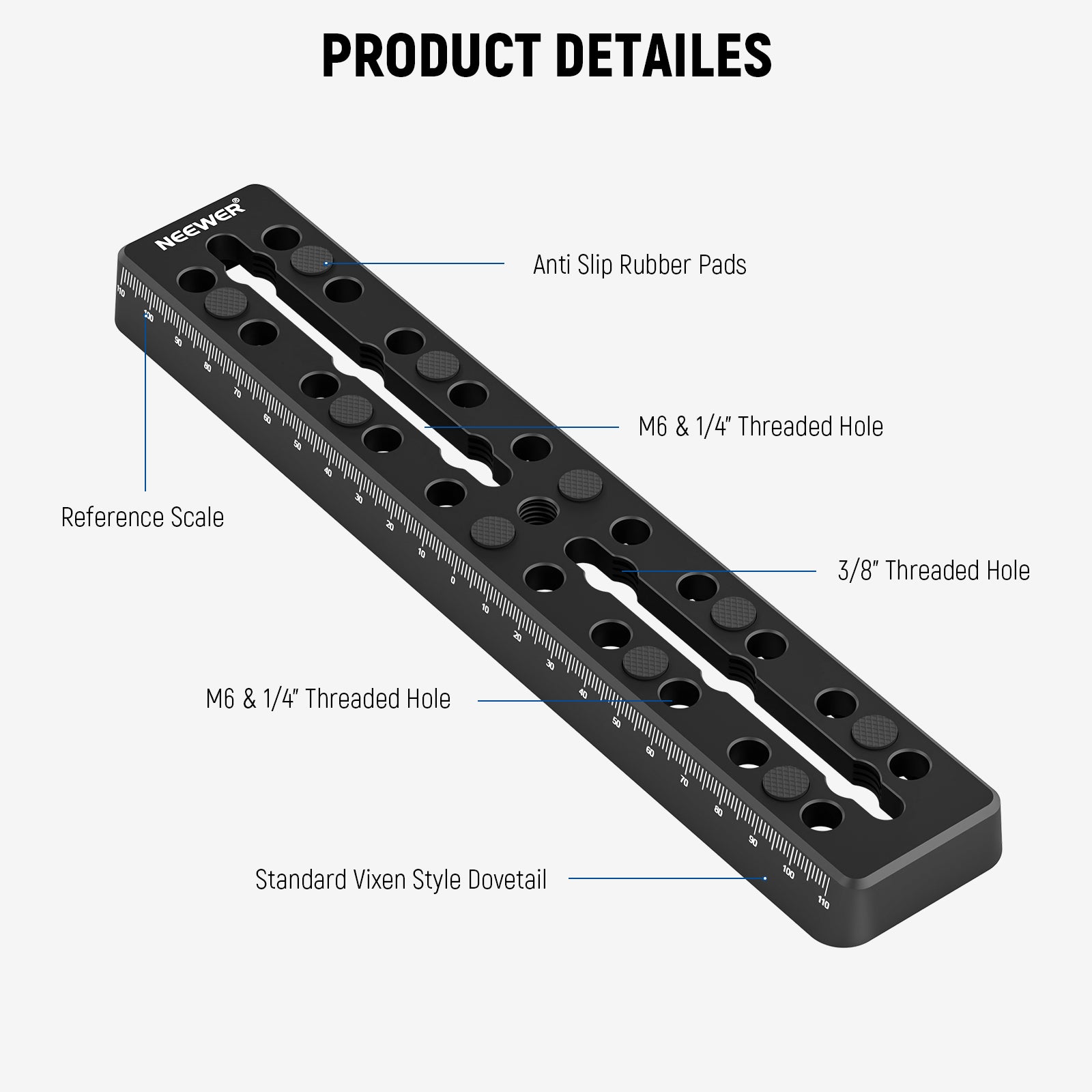

Features

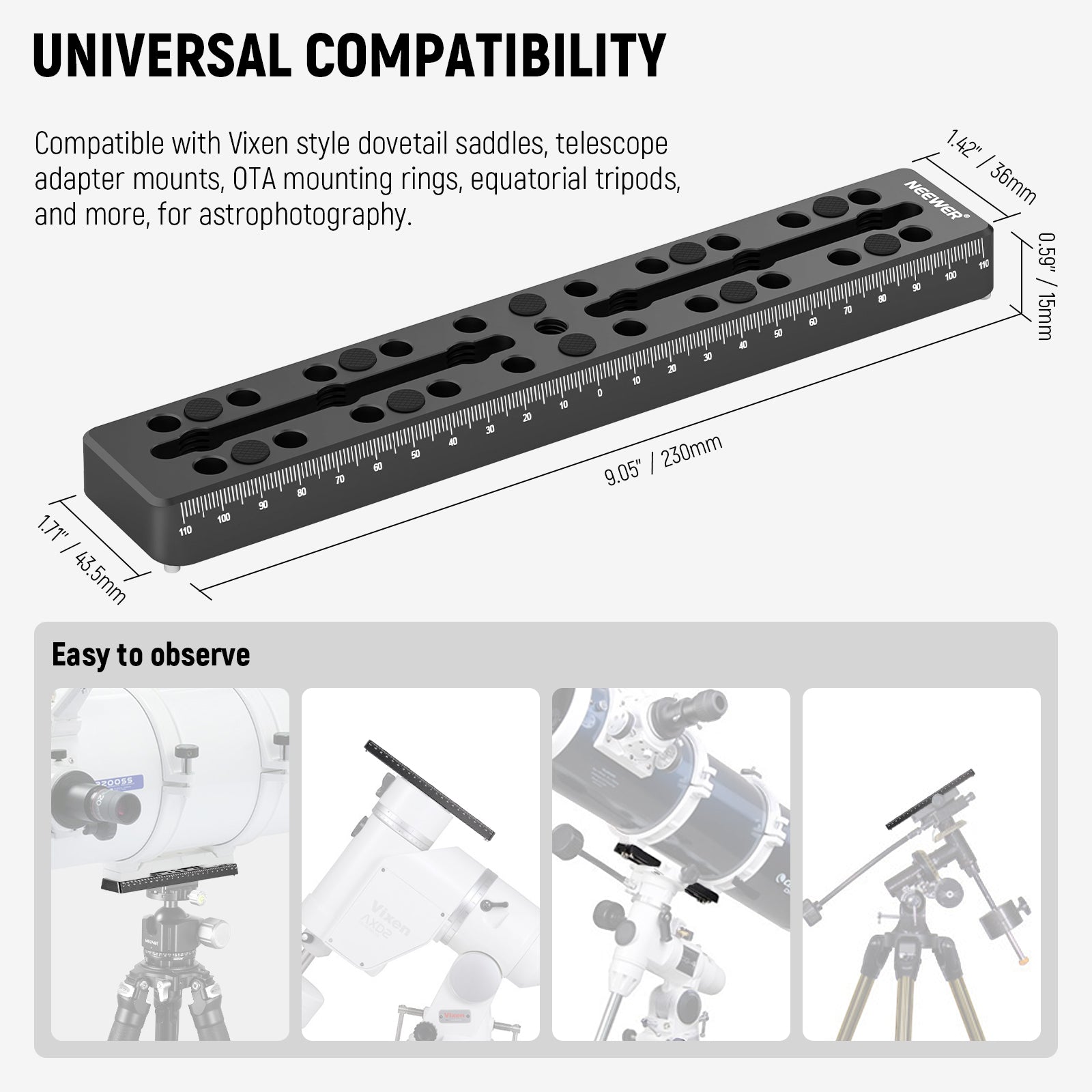

  • Universal Compatibility- Featuring a Vixen style dovetail at the base, this mounting plate is compatible with any standard vixen style saddle manufactured by various brands

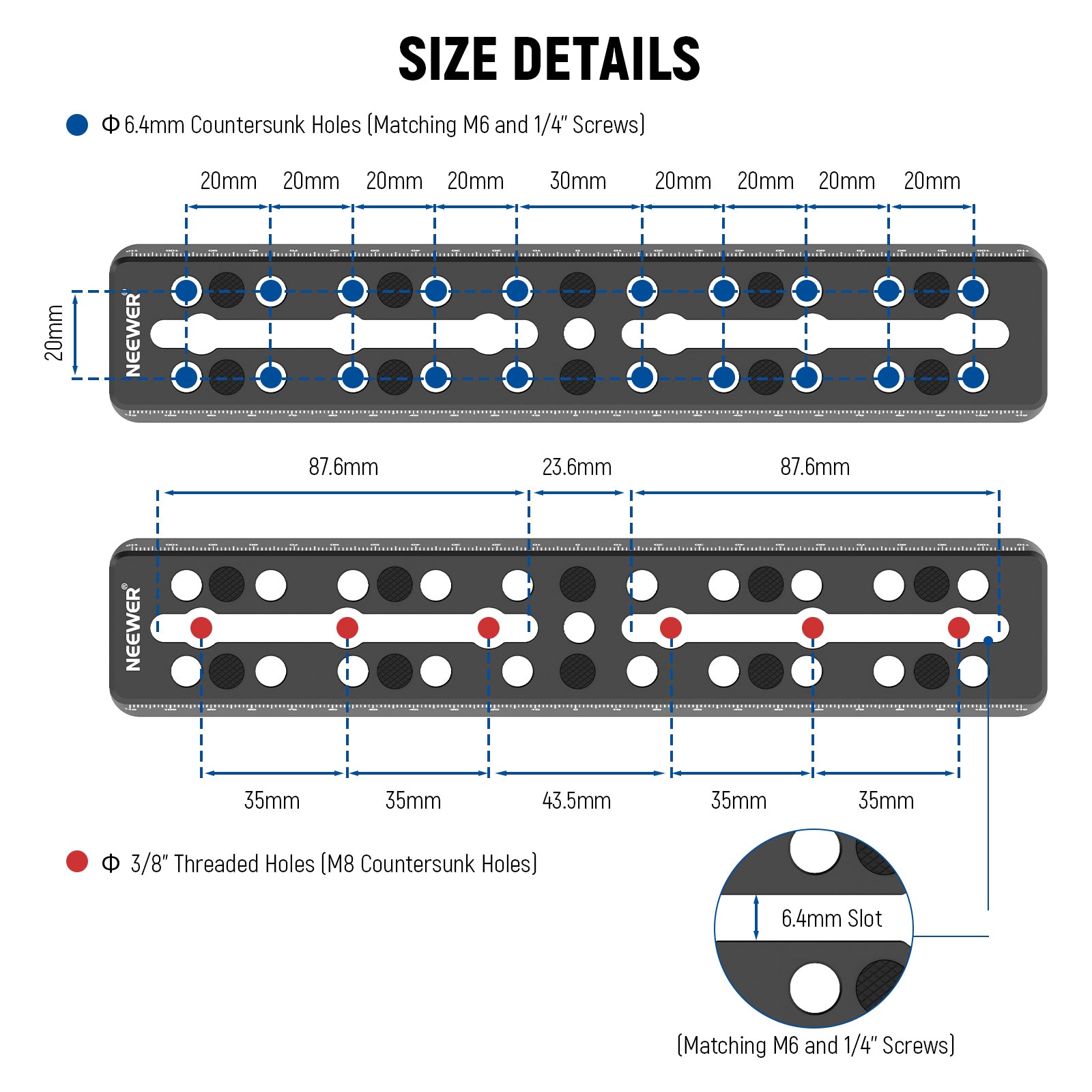

  • Diverse Mounting Points- Two 3.5" (87.6mm) countersink slots are designed for installing balancing equipment. 0.25" (6.4mm) in width, the slots can accommodate M6 and 1/4" screws. Each slot also features three 3/8" screw holes (M8 countersink holes) with a 1.4" (35mm) spacing between each one
  • Twenty 1/4" Screw Holes- Twenty 1/4" screw holes are evenly distributed on both sides of the countersink slots, with a spacing of 0.8" (20mm) between each other. These holes are useful for mounting a variety of devices with the matching thread

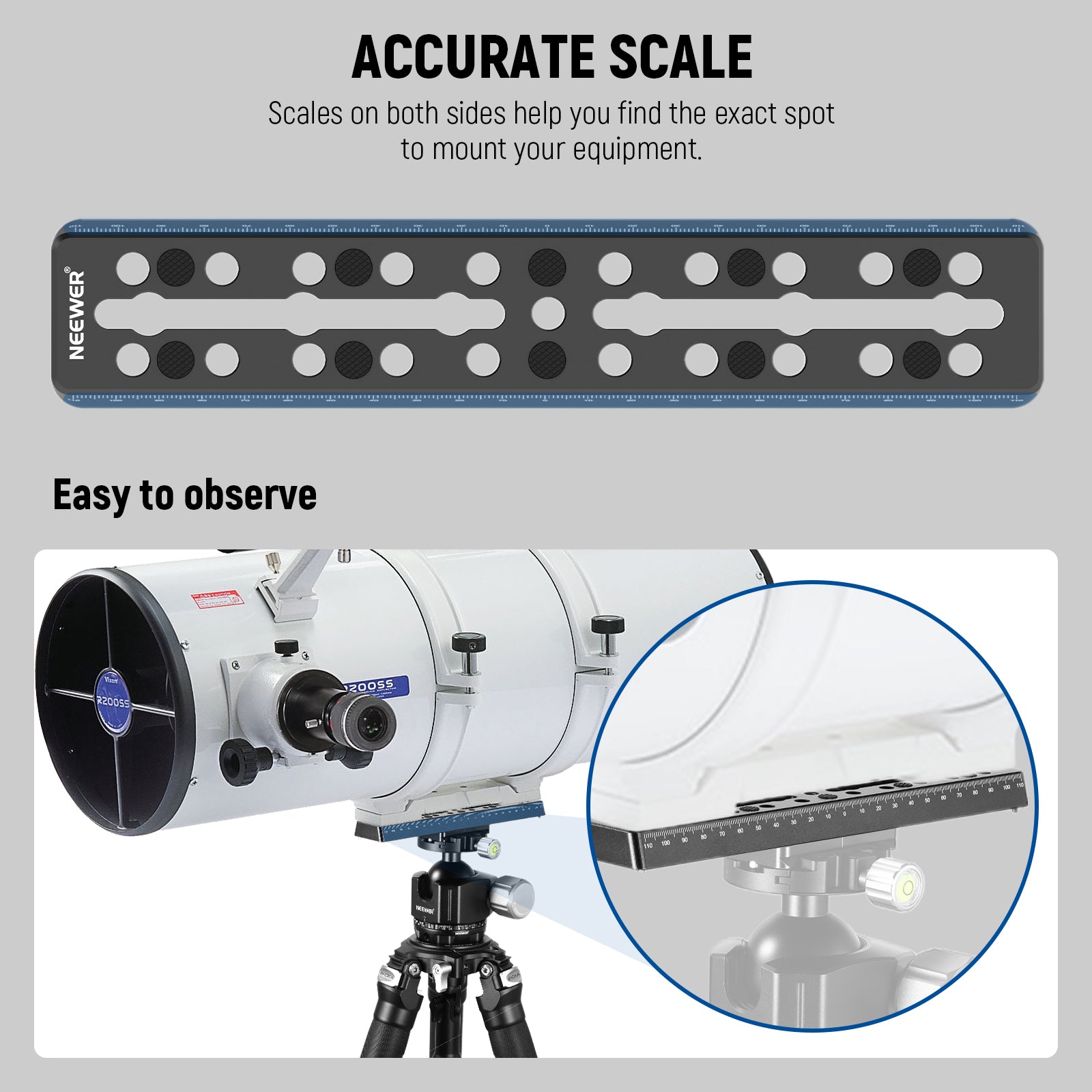

  • Precise Scale Markings- Scale markings on either side help you find a precise position to mount your equipment for astrophotography, celestial observation, night sky watching and stargazing

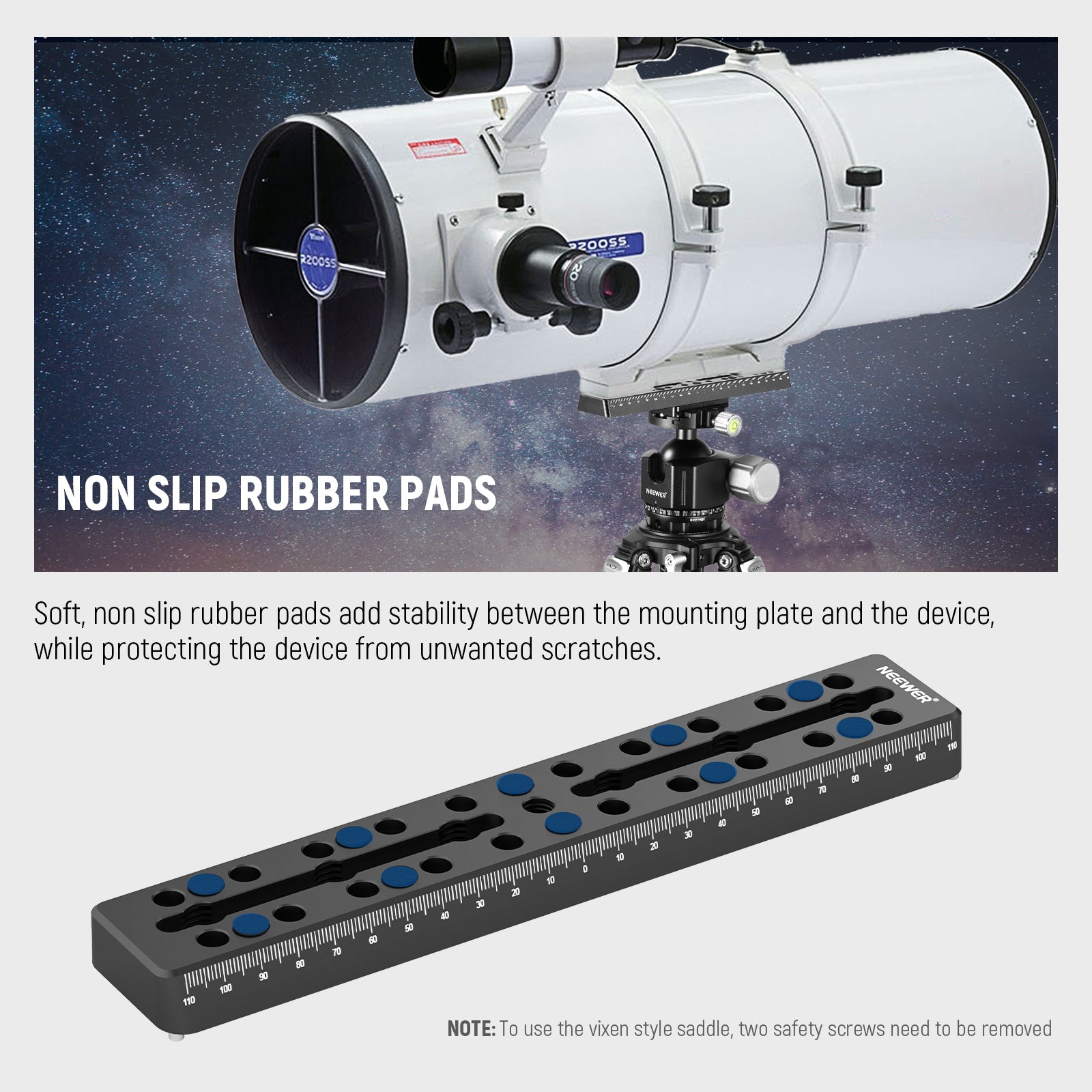

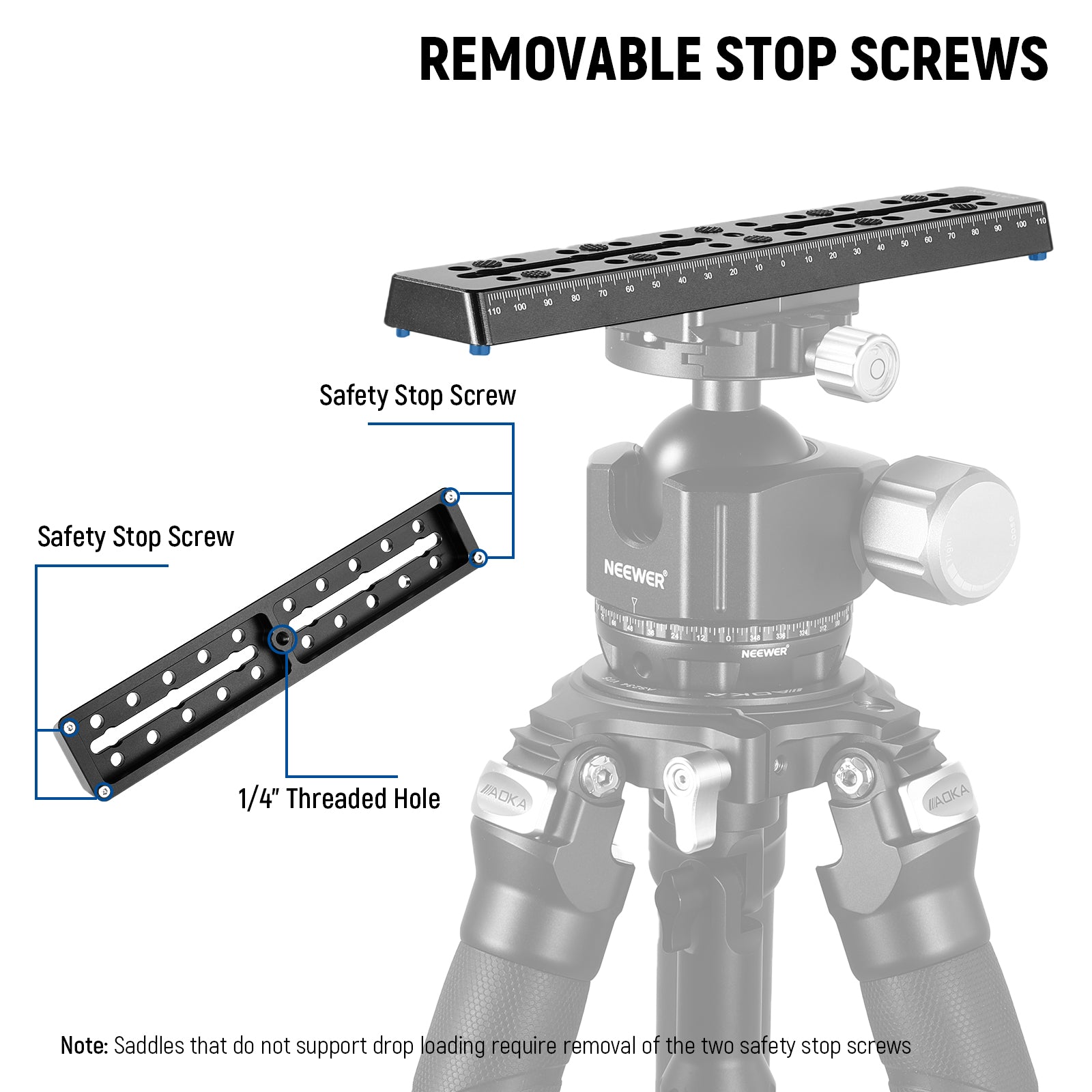

  • Nonslip Rubber Pads- Soft nonslip rubber pads increase stability between the mounting plate and your device while protecting the device from unwanted scratches. Four safety screws at the bottom can prevent the mounting plate from dropping. Note: To use the vixen style saddle, two safety screws need to be removed

Specifications

  • Model: QR003
  • Material: Aluminum alloy
  • Mounting Threads: M6, 1/4", 3/8"
  • Dimensions: 9" x 1.7" x 0.6" / 230 x 43.5 x 15mm
  • Weight: 7.7oz / 219g

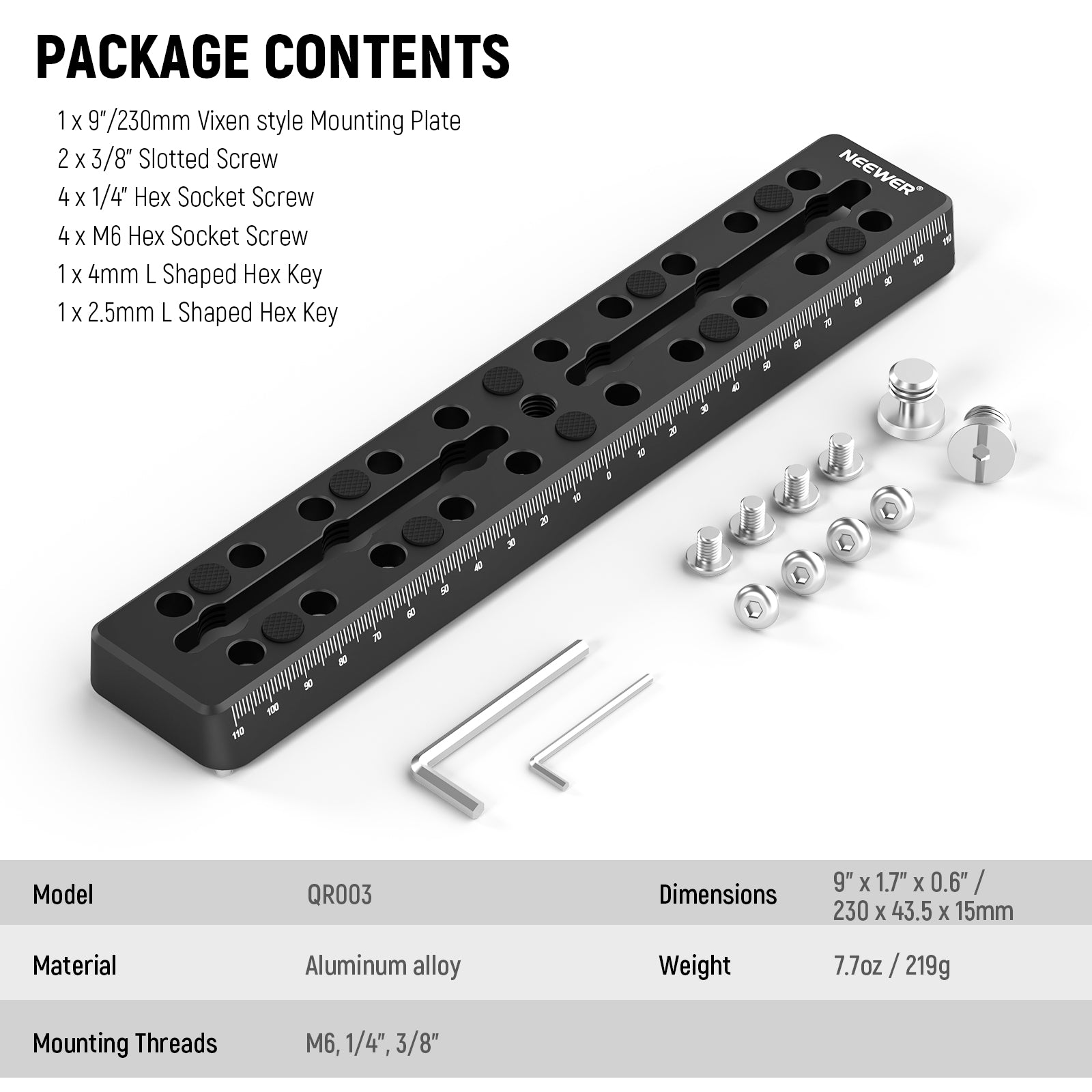

Package Contents

  • 2 x 3/8" Slotted Screws
  • 4 x 1/4" Hex Socket Screws
  • 4 x M6 Hex Socket Screws
  • 1 x 4mm L Shaped Hex Key
  • 1 x 2.5mm L Shaped Hex Key
